19 Inch Economy Capacitive Panel PC is designed for industrial applications that require stable computing performance, responsive touch interaction, and long-term durability. Equipped with Intel® 12th Gen Alder Lake i3/i5/i7 processors and optional N97 solutions, this industrial panel PC provides efficient processing power for factory automation, logistics systems, transportation monitoring, medical equipment integration, and smart building management.
The 19-inch industrial display delivers clear and stable visual performance, while the multi-point capacitive touch screen allows smooth and accurate operation in complex industrial environments. Its large display area improves workflow efficiency for industrial control systems, HMI platforms, and real-time monitoring applications.

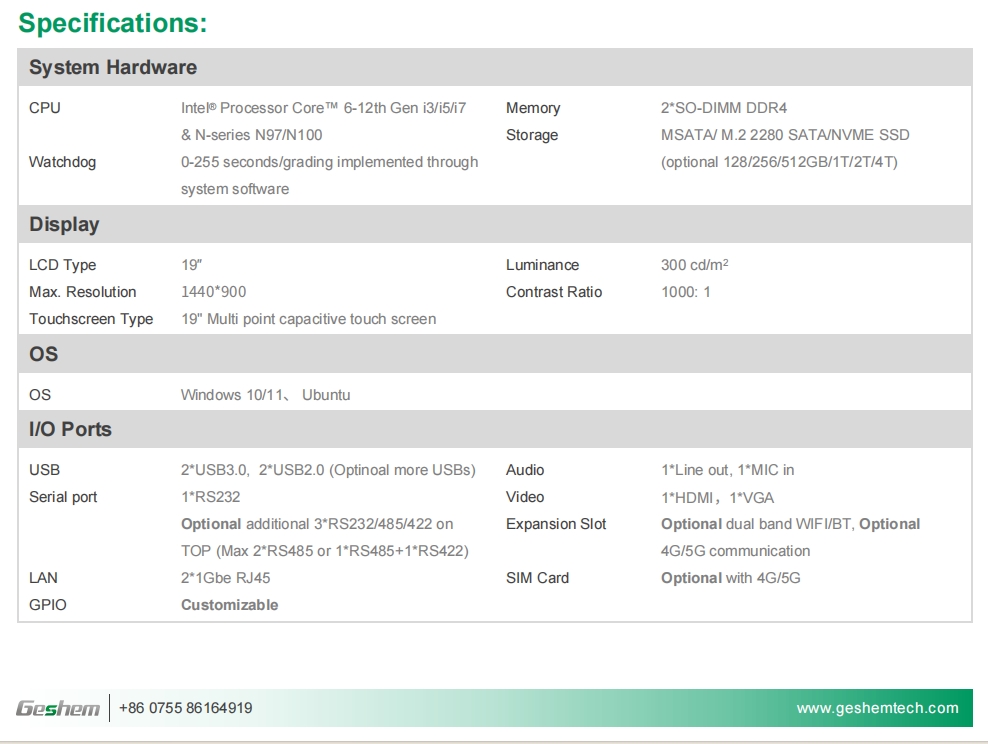

| System Hardware | |||
| CPU |
Intel® Processor Core™ 12th Gen i3/i5/i7 |
Memory |
DDR4 (optional 8/16/32/64GB,max 16GB for N97) |
| Watchdog |
0-255 seconds/grading implemented through system software |
Storage |
M.2 2280 NVME SSD (optional 128/256/512GB/1T/2T/4T) |
| Display | |||
| LCD Type |
19″ |
Luminance |
300 cd/m2 |
| Max. Resolution |
1440*900 |
Contrast Ratio |
1000: 1 |
| Touchscreen Type |
19" Multi point capacitive touch screen |
||
| OS | |||
| OS |
Windows 10/11、 Ubuntu | ||

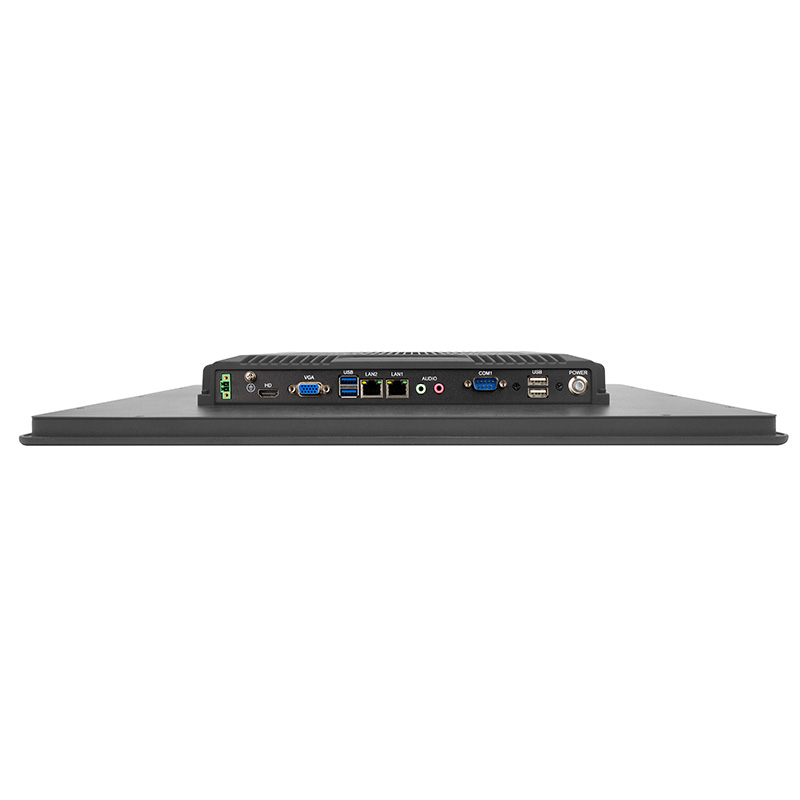

| I/O Ports | |||
| USB |
2*USB3.2, 2*USB2.0(optional USB3.0) |
Audio |
1*Line out, 1*MIC in |
| Serial port |
1*RS232 Optional additional |
Video |
1*VGA +1*HD |
| LAN |
2*1Gbe RJ45(Realtek） |
Expansion Slot |
Optional dual band WIFI/BT, optional 4G/5G communication |
| GPIO |
Customizable 4in+4out+VCC+GND |
SIM Card |
Optional with 4G/5G |
| Power | |||
| Power Input |
Standard Phoenix terminal(Optional Auto power on & 9-36V wide voltage input) | ||
| Environment | |||
| Vibration Protection |
5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
Operating Temp. |
-10℃～60℃, Surface air flow |
| Shock Protection Reliability |
10g acceleration, 11ms cycle MTBF ≥ 30000h; MTTR ≤ 0.5h |
Storage Temp. |
-20 ℃~70 ℃ |
| Humidity |
95% @ 40 ℃, no condensation |
IP Rating |
IP65 |
| Mechanical | |||
| Dimension (WxHxD) | 472.4mm*319.3mm*53.1mm |
Material |
All metal fanless design |
| Weight | 5.7kg/6.3kg(N.W./G.W.) |

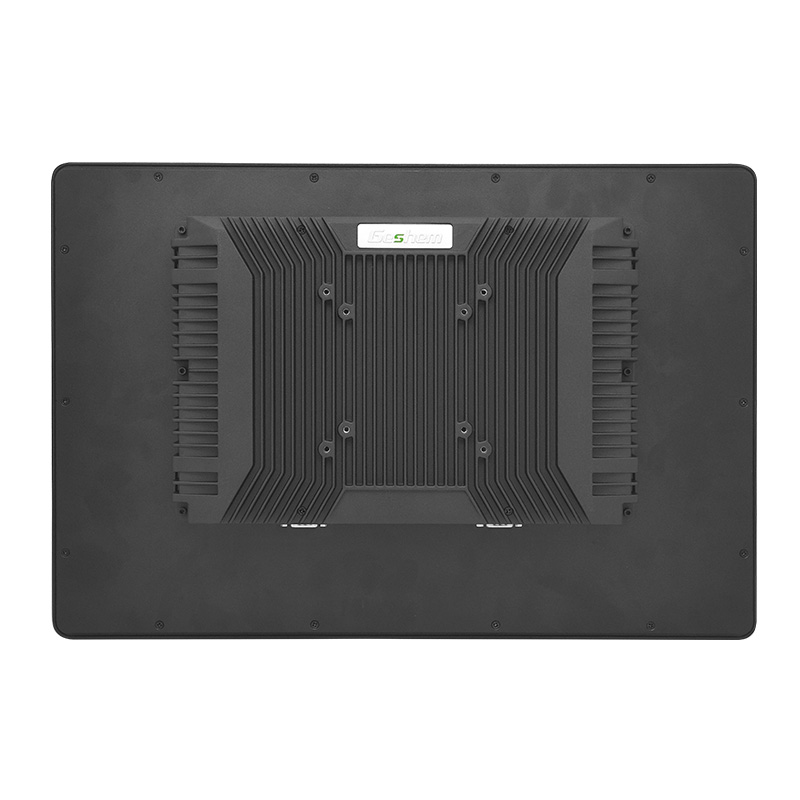

Mounting | VESA Installation: 75*75mm/100*100mm Embedded Installation: 459.6mm*306.5mm |
| Color |
Black |
||
| Ordering Information: | |||
| Serial Number |
Model |
CPU |
Notes |
| 1 | TY190-GS123B |
i3-1215U |
The CPU may change based on the market Please consult the sales for the specific CPU before placing the order |
| 2 | TY190-GS125B |
i5-1235U | |
| 3 | TY190-GS127B |
i7-1255U | |
| 4 | TY190-GSN97B |
N97 | |
