A 17 inch industrial panel pc needs to do more than display information. In factory automation, logistics, transportation, and building monitoring, your computer must support reliable interaction, connect with industrial equipment, and fit the available installation space. Choosing a model without checking its processor options, serial interfaces, operating temperature, and mounting requirements can lead to compatibility problems during deployment.

The Geshem TY170 series addresses these requirements with a 17-inch industrial display, multi-point capacitive touchscreen, Intel 12th Gen processor options, and an all-metal fanless design. Its front panel carries an IP65 rating for protection against dust and water jets, while optional connectivity and customizable I/O help you adapt the system to your application. This guide explains the specifications, compares processor configurations, and outlines how to evaluate the right model for your project.

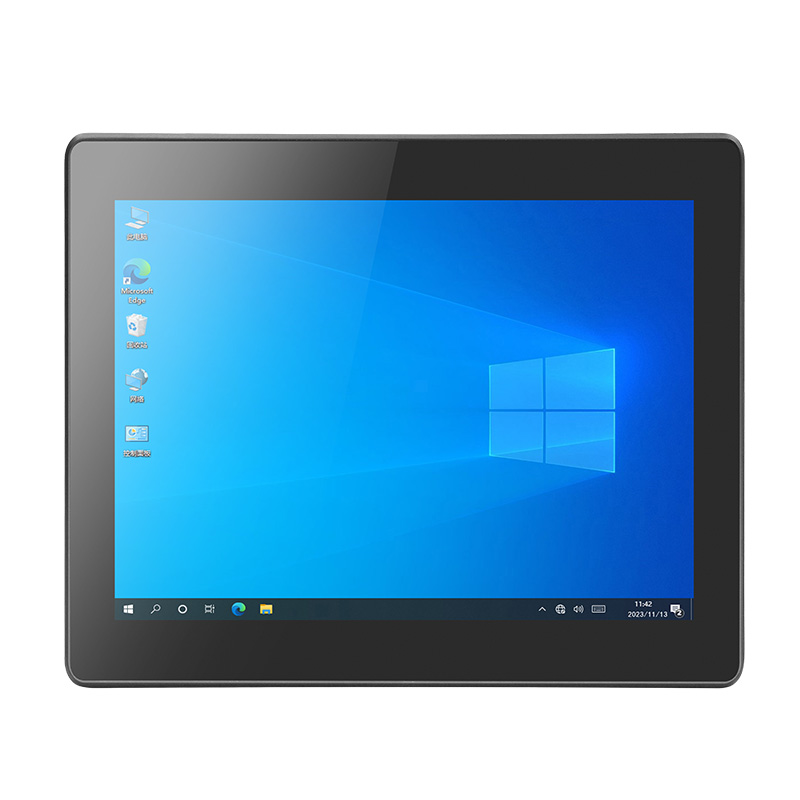

Key Features of the Geshem 17 Inch Industrial Panel PC

The Geshem 17-inch capacitive Panel PC combines computing, display, and touch input in one enclosure. It supports several processor configurations, allowing you to balance computing requirements and budget.

1. Intel Processor Options for Different Workloads

The TY170 series offers the following CPU configurations:

• TY170-GS123B: Intel Core i3-1215U

• TY170-GS125B: Intel Core i5-1235U

• TY170-GS127B: Intel Core i7-1255U

• TY170-GSN97B: Intel N97

The Core i3 option can suit basic monitoring and operator-interface tasks. The Core i5 configuration is worth considering for applications that run several business or control applications simultaneously, while the Core i7 option may be appropriate for more demanding computing workloads. The N97 configuration provides an alternative for projects with different performance and budget requirements.

Confirm the exact processor before ordering because Geshem notes that CPU availability may change with market conditions.

2. 17-Inch Capacitive Touchscreen

The display has a maximum resolution of 1280 × 1024, a brightness rating of 300 cd/m², and a contrast ratio of 1000:1. Its multi-point capacitive touchscreen supports direct interaction with industrial software and operator interfaces.

This configuration can support applications such as:

• Factory production monitoring and machine operation

• Warehouse inventory and logistics management

• Building monitoring and equipment management

• Transportation control interfaces

• Medical equipment interfaces, subject to application-specific requirements

Before deployment, check whether the resolution, brightness, and touch functionality meet your software and ambient-light requirements.

3. IP65 Front Panel and Fanless Construction

The enclosure uses an all-metal, fanless design. The front panel has an IP65 rating, helping protect against dust ingress and water jets when installed and used under appropriate conditions.

The published environmental specifications include:

• Operating temperature: -10°C to 60°C, with surface airflow

• Storage temperature: -20°C to 70°C

• Relative humidity: 95% at 40°C, non-condensing

• Vibration resistance: 5–17 Hz at 1.0 mm amplitude; 17–200 Hz at 1.0 g

• Shock resistance: 10 g acceleration, 11 ms duration

• MTBF: ≥30,000 hours

• MTTR: ≤0.5 hours

IP65 applies to the front panel, not automatically to the entire enclosure or installation. If your application involves high-pressure cleaning, immersion, severe vibration, or extreme temperatures, confirm the complete system’s suitability with Geshem.

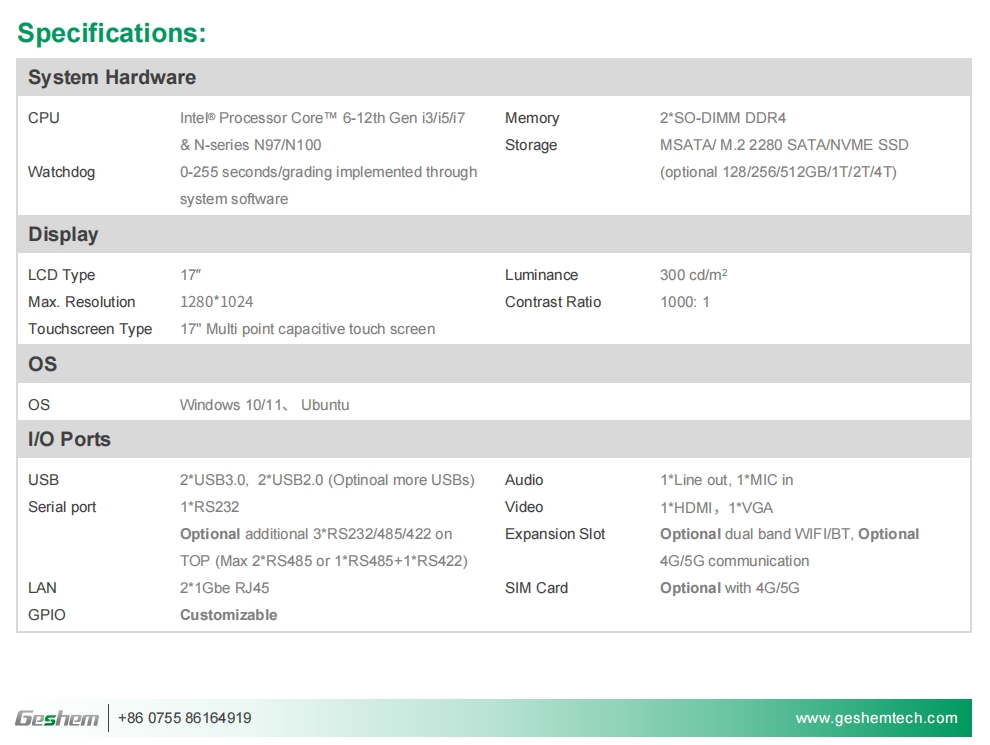

Technical Specifications at a Glance

Additional interfaces include VGA, HD video output, audio, and customizable GPIO with 4 inputs and 4 outputs, plus VCC and GND. Optional serial configurations support RS232, RS485, and RS422, subject to the available combinations.

How to Choose the Right 17 Inch Industrial Panel PC

Your processor, memory, and interface requirements should determine which configuration you select. The following comparison provides a practical starting point.

These are general selection guidelines rather than guaranteed performance benchmarks. Actual performance depends on the software, workload, memory, storage, and operating environment.

Installation and Configuration Checklist

Follow these steps before placing your order:

1. Define your workload. List the control software, monitoring tools, and applications that will run on the Panel PC.

2. Choose the processor and memory. Match the CPU to your computing needs and confirm that the memory capacity is supported by your selected model.

3. Verify connectivity. Count the required USB, Ethernet, RS232, RS485, RS422, GPIO, and wireless connections.

4. Check the installation space. Confirm the 398 × 323.6 × 53.2 mm dimensions and choose VESA or embedded mounting.

5. Review environmental conditions. Verify temperature, airflow, humidity, vibration, and front-panel protection requirements.

6. Confirm customization and availability. Ask Geshem to verify the final CPU, interface configuration, power input, and optional communication modules.

Why Choose Geshem for Industrial Panel PC Projects?

Shenzhen Geshem Technology Co., Ltd. was established in 2012 and develops industrial computing products, including Panel PCs, embedded Box PCs, industrial monitors, rugged tablets, and industrial motherboards.

Geshem provides OEM/ODM services, modular design options, software customization, and after-sales support. Its products serve applications across manufacturing, transportation, logistics, warehousing, education, medical equipment, IoT, and other industrial sectors.

For projects requiring a customized industrial computer, these capabilities can help you evaluate the appropriate hardware configuration and installation method before procurement.

FAQ

1. Does the 17 inch industrial panel PC support Windows and Linux?

Yes. The published specifications list Windows 10, Windows 11, and Ubuntu. Confirm compatibility with your required software, drivers, and selected hardware configuration before ordering.

2. Can I customize the serial ports and wireless connectivity?

Yes. The system offers optional additional serial interfaces, Wi-Fi/Bluetooth, and 4G/5G connectivity. Serial-port combinations have specific limits, so provide your required interface list to Geshem for confirmation.

3. Is the IP65 rating applicable to the entire Panel PC?

The published IP65 rating applies to the front panel. Do not assume that the rear enclosure, connectors, or complete installation has the same protection level. Ask Geshem to confirm the protection requirements for your operating environment.

Conclusion

The 17 inch industrial panel pc from Geshem combines a 1280 × 1024 capacitive touchscreen, Intel 12th Gen Core processor options or Intel N97, fanless all-metal construction, and IP65 front-panel protection. With optional serial interfaces, wireless communication, and VESA or embedded mounting, the TY170 series offers configuration choices for industrial monitoring, factory automation, transportation, and logistics applications.

To select the right model, evaluate your software workload, memory requirements, I/O connections, and installation conditions before procurement. Confirm the exact CPU and optional features with Geshem to ensure that the final configuration matches your project.
