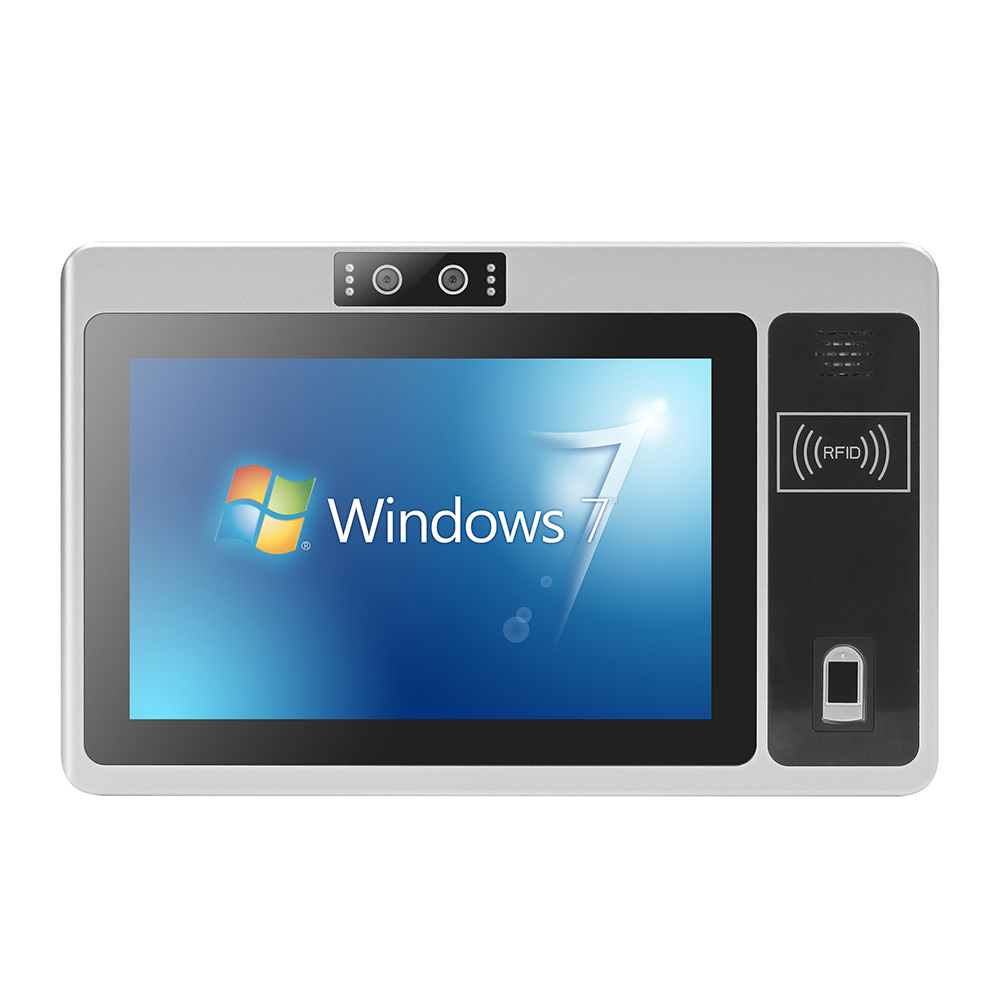

Category: Capacitive Touch Panel PC, Panel PC
| System Hardware | |||
| CPU | J1900/3855U/3865U/Core™ i(6/7th generation) series processors | Memory | 4GB DDR3L memory, up to 8GB |
| Support hardware reset function (256 levels, 0~255 seconds) | Storage | MSATA: 128GB, up to 512GB | |
| Watchdog | |||

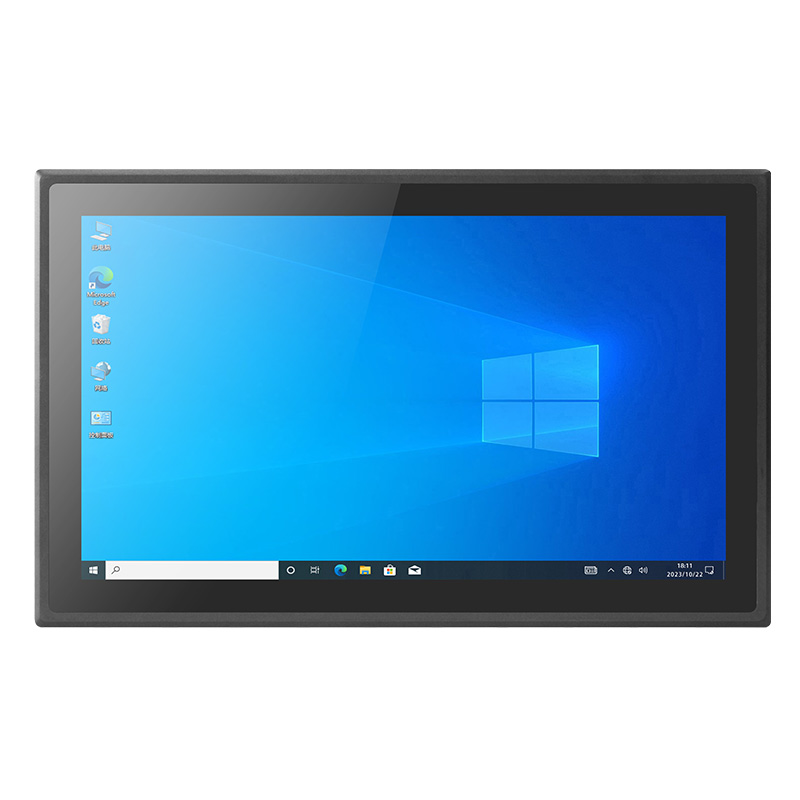

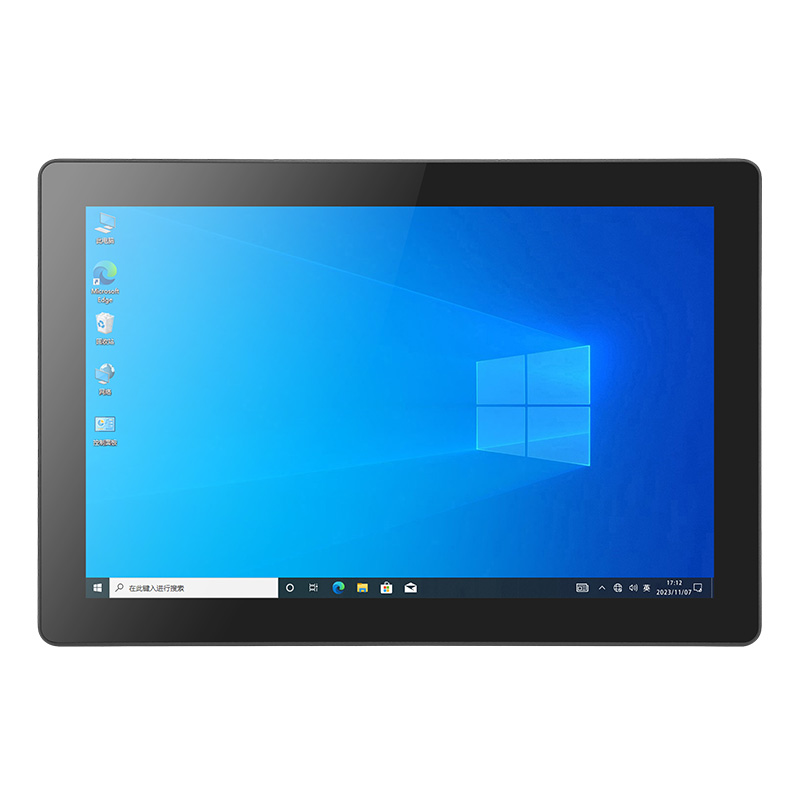

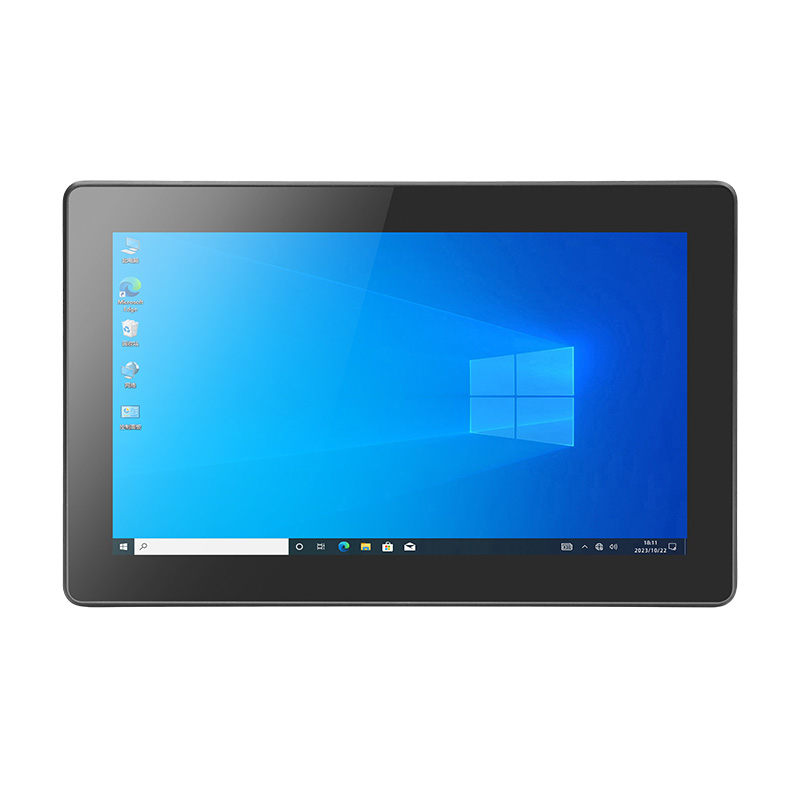

| Display | |||
| LCD Type | 10.1″ LCD | Viewing Angle | 150° (H) * 150° (E) |
| Resolution | 1280*800 | Contrast | 800: 1 |
| Luminance | 350 cd/m2 | Backlight life | 30000 hr(min.) |
| Touchscreen | |||
| Touchscreen Type | Capacitive touch screen | Hardness | ≥6H |
| Light Transmission | ＞85% | ||
| OS | |||
| OS | Windows 7、Windows 10、 Linux | ||

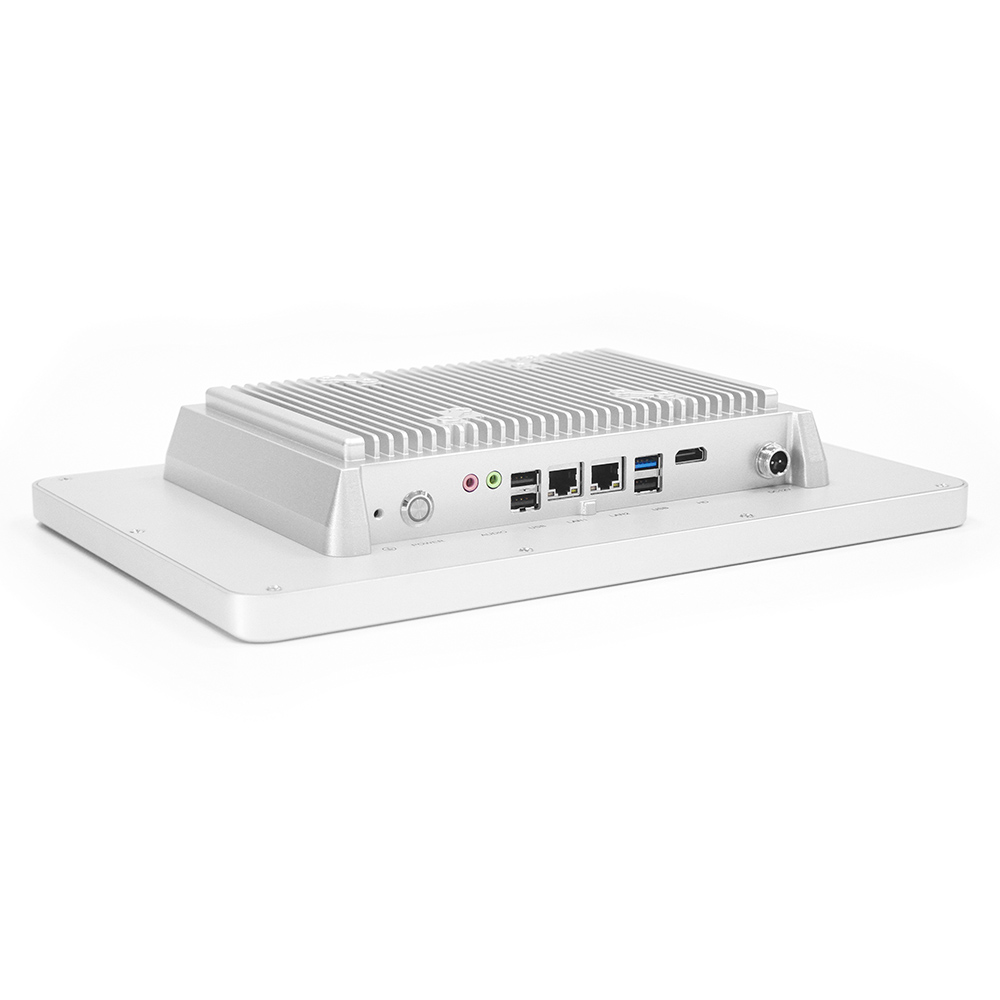

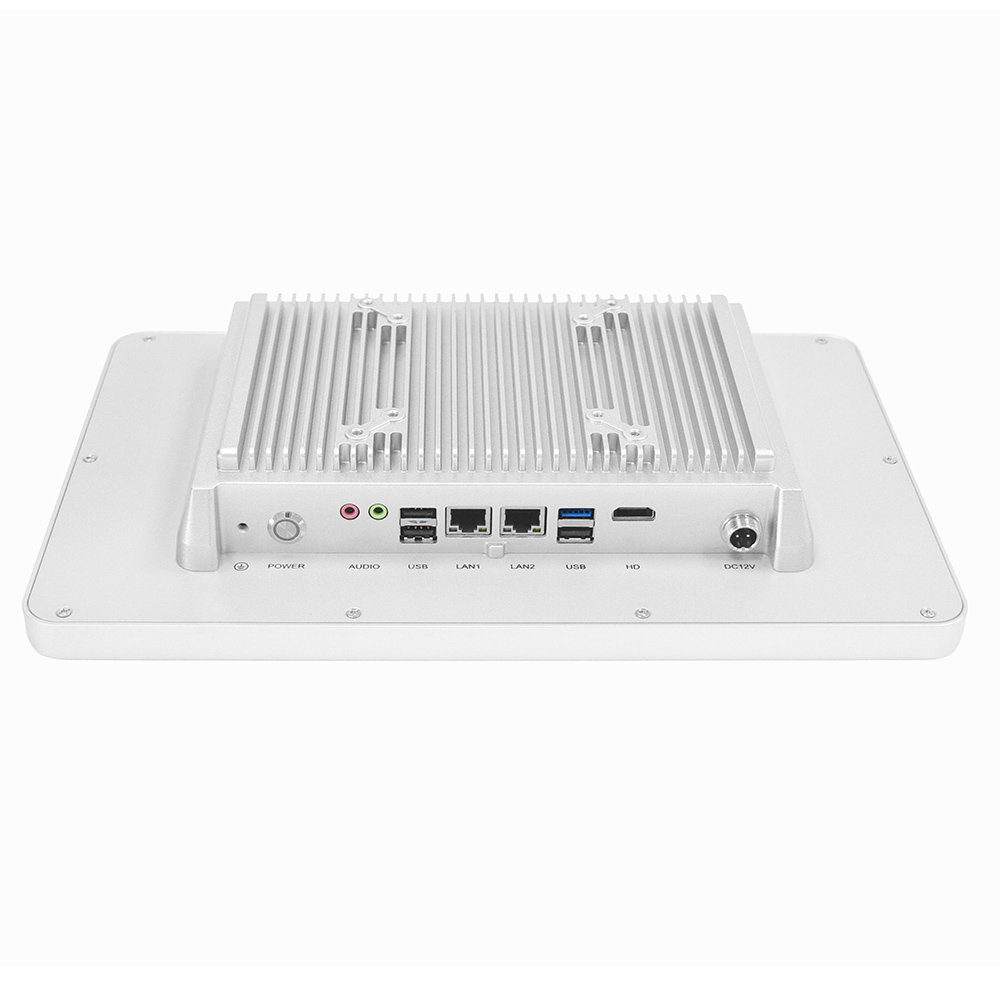

| I/O Ports | |||
| USB | 3*USB 2.0 + 1*USB3.0 (Celeron® J1900) | Audio | 1*Line-out, 1*Mic-in |
| 4*USB 3.0 (3855U/3865U/6/7th Gen Core™ i) | Video | 1*HD | |
| LAN | 2*RJ45 Gigabit Ethernet ports | GPIO | 4In/4Out (optional, occupy a serial port) |
| Expansion Slot | 1*Mini PCIe (Wifi/BT/3G/4G optional) | ||

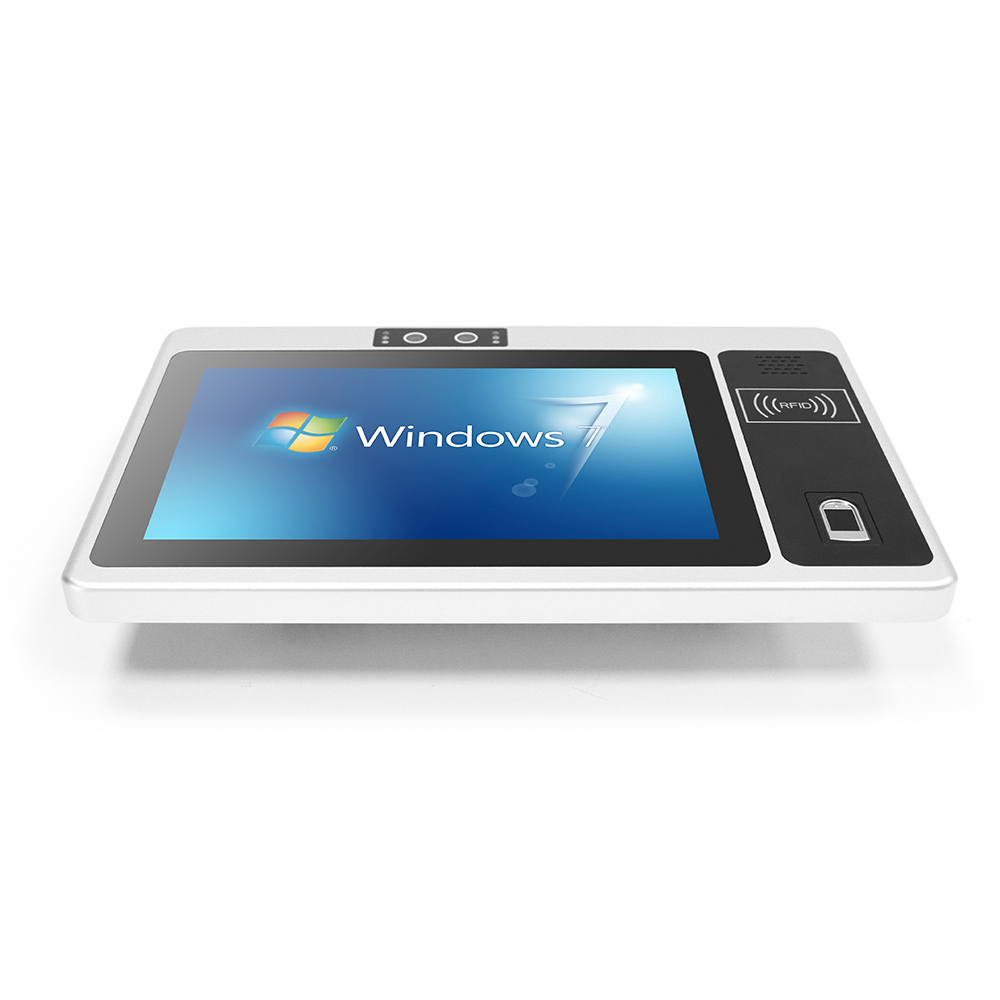

| Extended Function | |||
| Camera | 2 MP binocular face recognition camera | Fingerprint Module | Support fingerprint comparison, capacity 1000 pieces |
| RFID | Support ID card, IC card | ||
| Power | |||
| Power Input | 9~24V DC input (optional 9~36V wide voltage input), standard 12V/5A power adapter | ||
| Environment | |||
| Operating Temp. | -10℃~55℃ (wide temperature optional) | Shock Protection | 10G/11ms |
| Storage Temp. | -30℃~70℃ (wide temperature optional) | Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Humidity | 95% @40℃, non-condensing | Reliability | MTBF≥30000h; MTTR≤0.5h |
| IP Rating | Front panel IP65 (optional) | ||

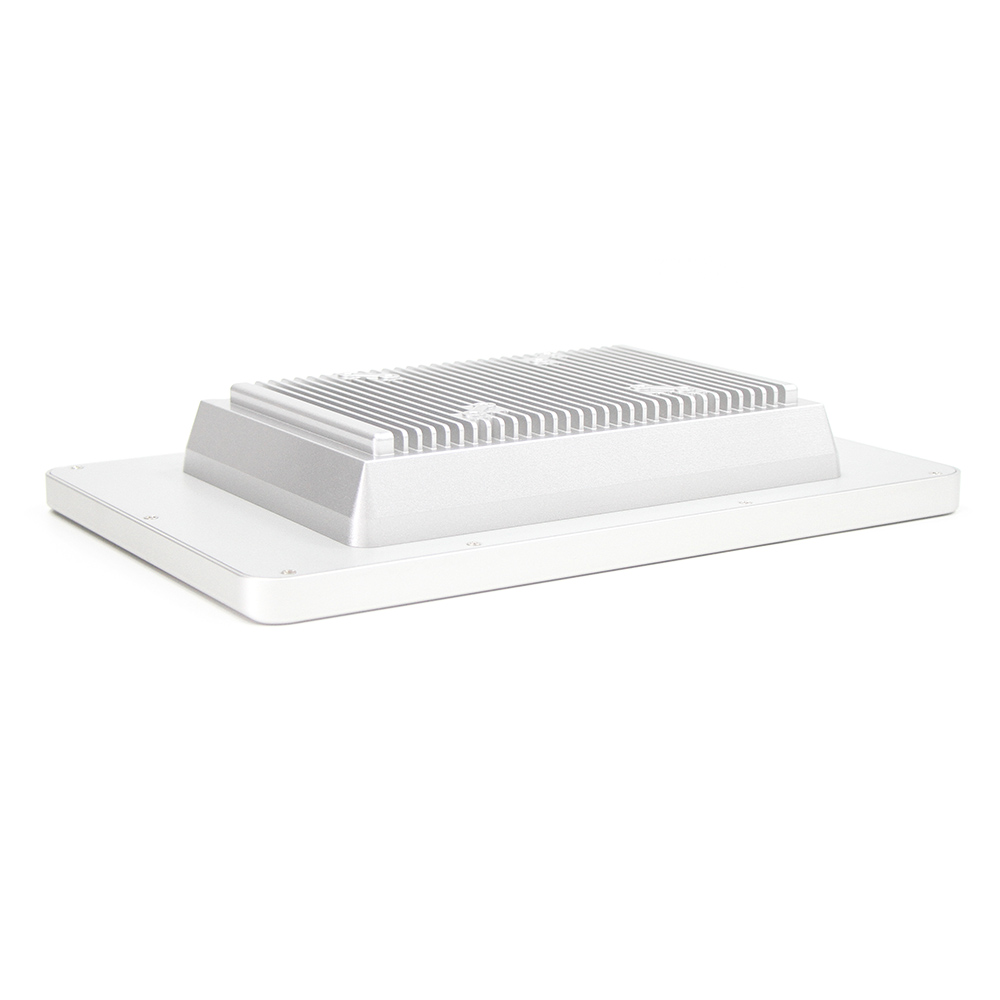

| Mechanical | |||

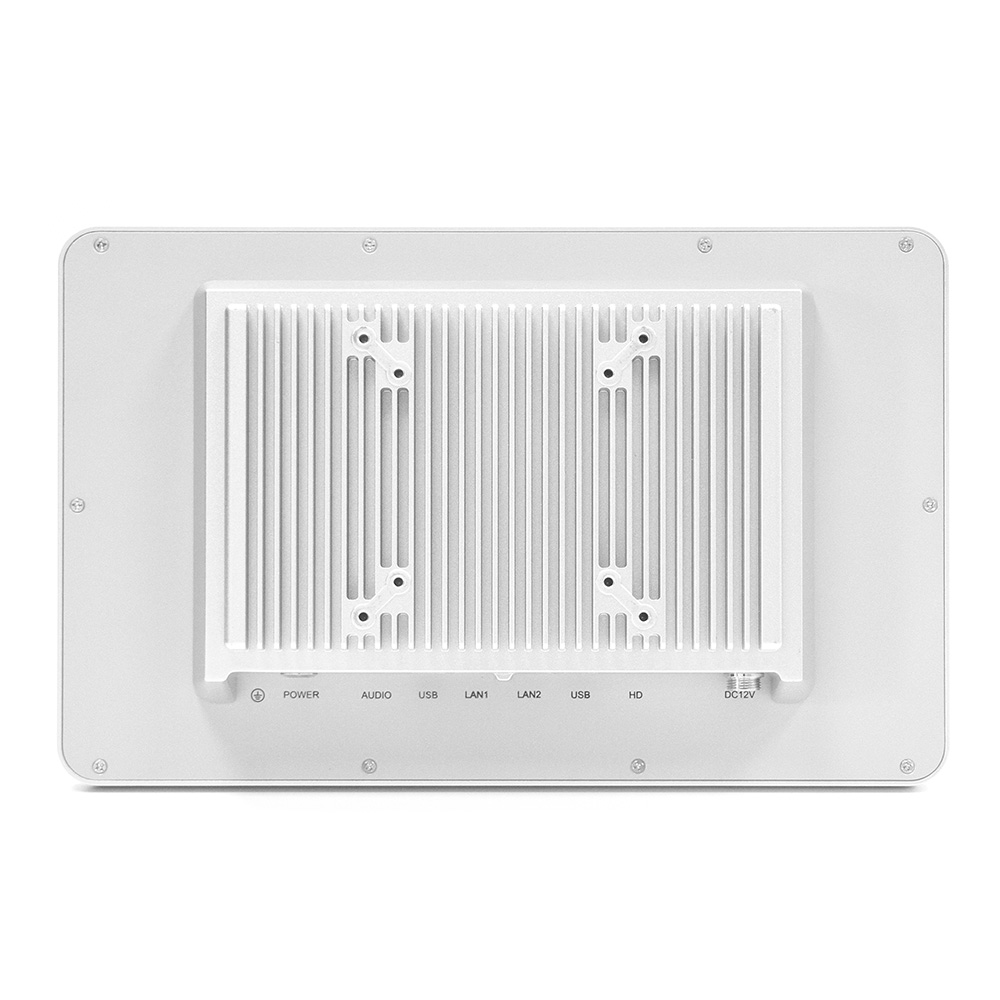

| Dimension (WxHxD) | 332*210*55mm | Mounting | VESA mounting: 100*100mm, 75*75mm |
| Weight | 2.76kg/3.9kg(N.W./G.W.) | ||
| Color | Silver | ||
