An industrial touch panel PC helps you operate machinery, monitor production data, and manage industrial processes through a single integrated interface. However, choosing the right device requires more than checking screen size. You also need to consider touchscreen technology, processor performance, connectivity, operating temperature, and protection against workplace contaminants.
Geshem’s 8-inch resistive panel PC combines an industrial TFT-LCD, multiple processor options, and a range of I/O interfaces in a compact metal enclosure. Designed for industrial equipment and space-constrained installations, this system supports Windows and Linux operating systems. Its fanless design and optional IP65-rated front panel make it worth evaluating for applications where equipment reliability and practical maintenance requirements matter.
Key Features of Geshem’s Industrial Touch Panel PC

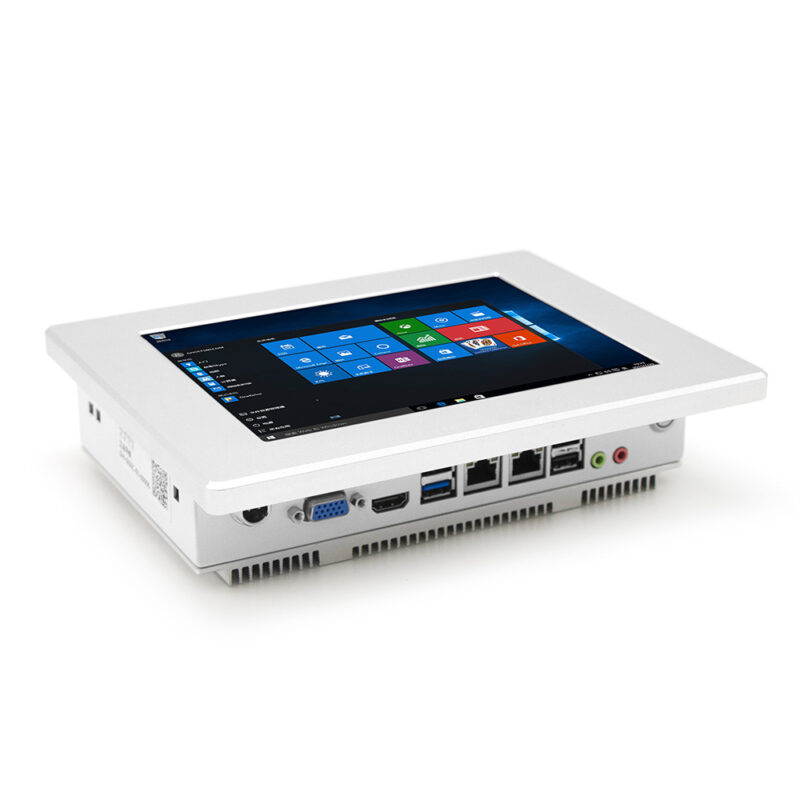

1. 8-Inch Resistive Touchscreen
The device features an 8-inch TFT-LCD with a maximum resolution of 800 × 600 pixels. Its 5-wire resistive touchscreen provides an input method suited to industrial control interfaces and equipment operation.
Key display specifications include:
- Screen size: 8 inches
- Resolution: 800 × 600 pixels
- Brightness: 300 cd/m²
- Contrast ratio: 400:1
- Viewing angle: 170° horizontal and vertical
- Backlight lifetime: 30,000 hours minimum
- Touchscreen hardness: 3H
- Light transmission: Greater than 78%
If your application relies on clearly presented operating parameters, status indicators, or machine controls, these specifications help you assess whether the display meets your interface requirements.
2. Flexible Processor and Memory Options
This industrial touch panel PC supports several processor configurations, including Intel Celeron J1900, Intel Celeron 3855U, Intel Celeron 3865U, and selected 8th-generation Intel Core processors.
Memory capacity depends on the processor configuration. Core processor versions support up to 16 GB of memory, while the other listed configurations support up to 8 GB. The system also accommodates a 2.5-inch SSD or HDD with a maximum supported capacity of 1 TB.
These options allow you to evaluate different configurations according to your software requirements, data storage needs, and budget. Before ordering, confirm the exact processor, memory, and storage combination with Geshem.

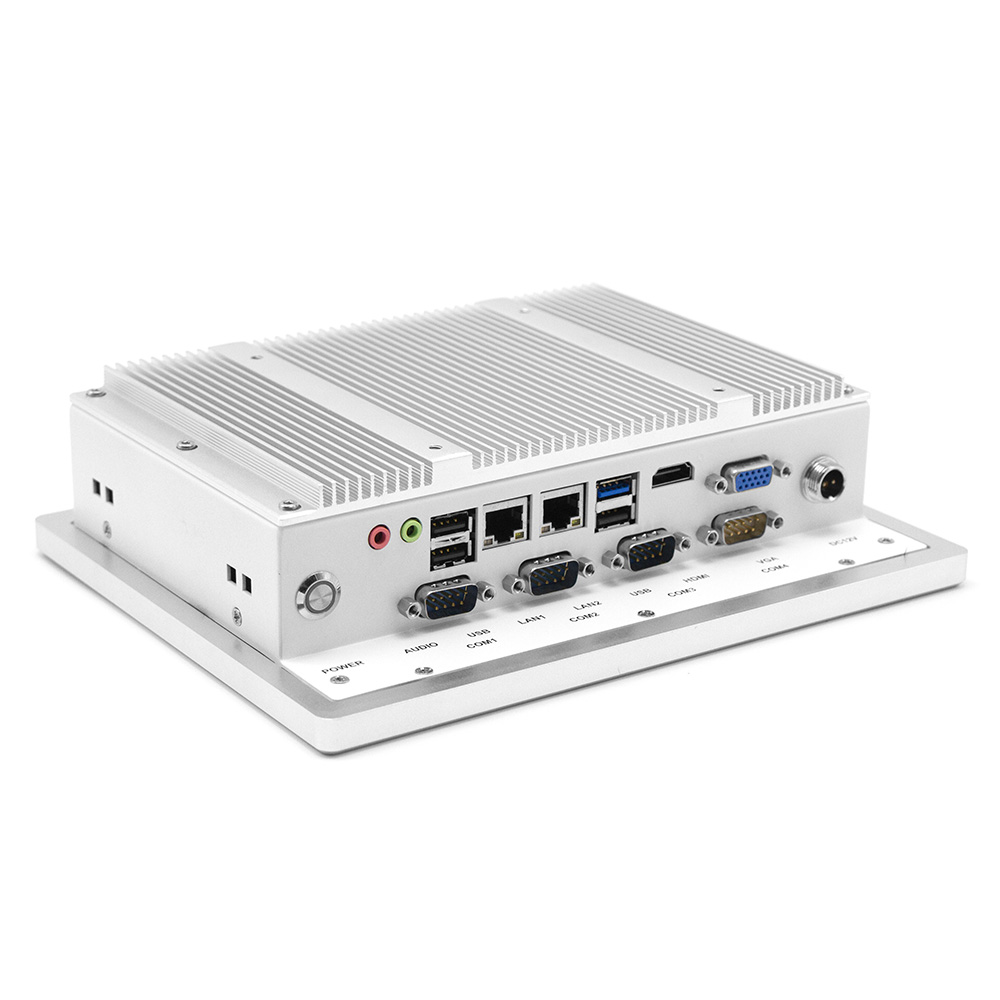

3. Industrial Connectivity for Equipment Integration
Industrial automation systems often need to communicate with controllers, sensors, instruments, and other equipment. This panel PC provides multiple interfaces for connecting compatible devices.
| Interface or component | Specification |
|---|---|
| USB | 4 ports; configuration varies by processor |
| Serial communication | 4 × RS232; RS422/RS485 optional |
| Ethernet | 2 × RJ45 Gigabit Ethernet |
| Video output | 1 × VGA, 1 × HD output |
| Audio | Line-out and microphone input |
| Expansion | 1 × Mini PCIe |
| GPIO | 4 inputs and 4 outputs, optional |
The four serial ports can support integration with compatible industrial instruments and control equipment. Dual Gigabit Ethernet ports provide additional network connectivity for systems that require separate network connections.
Wi-Fi, Bluetooth, 3G, and 4G expansion options are available for evaluation through the Mini PCIe slot. Check compatibility with your intended module and operating system before deployment.
Industrial Applications and Environmental Considerations
An industrial touch panel PC should match the conditions of its installation environment. Geshem’s 8-inch model may be suitable for several applications, depending on the final hardware configuration and system requirements.
Where Can You Use This Panel PC?
- Industrial automation: Operate machine interfaces, display production parameters, and access compatible control software.
- Logistics and warehousing: Support equipment monitoring and workstation-based operational systems.
- Transportation equipment: Integrate with compatible control or monitoring systems that require serial and Ethernet connections.
- Industrial machinery: Provide a compact interface for equipment status, parameter adjustment, and operator input.
The unit uses a metal enclosure and a fanless design. Its specified operating temperature range is -10°C to 60°C with airflow, while the storage temperature range is -20°C to 70°C. Confirm actual enclosure temperature and ventilation conditions before installation.
The front panel is available with optional IP65 protection. If your equipment will encounter dust, water splashes, or oil, verify the selected protection configuration and the complete installation’s sealing requirements. Do not assume that the optional front-panel rating applies to the entire enclosure.
How to Select the Right Industrial Touch Panel PC
Follow these steps before requesting a quotation:
- Define your application. Identify the control software, display requirements, installation space, and connected equipment.
- Select the processor. Compare the J1900, 3855U, 3865U, and supported Core processor options against your software workload.
- Check interface requirements. Confirm the number of serial ports, USB connections, Ethernet ports, and any optional RS422/RS485 interfaces you need.
- Evaluate environmental conditions. Check operating temperature, airflow, moisture exposure, and whether optional IP65 front-panel protection is necessary.
- Confirm mounting and power. The unit measures 228 × 178 × 60.8 mm, weighs approximately 2.0 kg, and supports VESA mounting at 100 × 100 mm or panel mounting at 213 × 132 mm. Standard power input is 9–24 V DC, with an optional 9–36 V DC range.
- Request configuration confirmation. Ask Geshem to confirm the processor, operating system, storage, expansion modules, and protection options for your order.
Frequently Asked Questions
1. What operating systems does this industrial touch panel PC support?
The listed operating systems are Windows 7, Windows 10, and Linux. Confirm driver availability and compatibility with your application before selecting an operating system.
2. Does the 8-inch panel PC have IP65 protection?
IP65 protection is optional for the front panel. Confirm that the selected model includes this option and check whether the protection level meets your installation requirements.
3. Can I customize the processor and communication interfaces?
The product offers multiple processor configurations and optional interfaces, including RS422/RS485. Geshem also provides OEM/ODM and customization services. Discuss your required specifications with the company to confirm feasibility.
Conclusion
Choosing the right industrial touch panel PC means matching display performance, processing capability, connectivity, and environmental protection to your actual application. Geshem’s 8-inch resistive panel PC offers multiple processor options, four serial ports, dual Gigabit Ethernet, fanless operation, and optional IP65 front-panel protection in a compact industrial system. Reviewing these specifications against your installation requirements can help you identify a suitable configuration.
Request a Configuration and Quotation
Contact Shenzhen Geshem Technology Co., Ltd. at marketing@geshem.cn or call +86 18362970867. Share your application, preferred processor, required interfaces, operating environment, and estimated order quantity to help the team evaluate a suitable industrial panel PC configuration.
