Category: Box PC, Compact Embedded Box PC
| System Hardware | |||
| Chipset | Intel® Bay-trail J1900 | Watchdog | 0-255 seconds/classification is realized by system software |
| Ram | 2GB DDR3L memory, up to 8GB | Power Supply | 9-24V DC input (optional 9-36V wide voltage) 10W (standby state) 15W (rated power) |
| Storage | 64GB/128GB/512GB SSD (optional) | Hardware monitor | Voltage and CPU temperature monitoring |
| OS | |||
| OS | Windows 7/8/10、Linux | ||

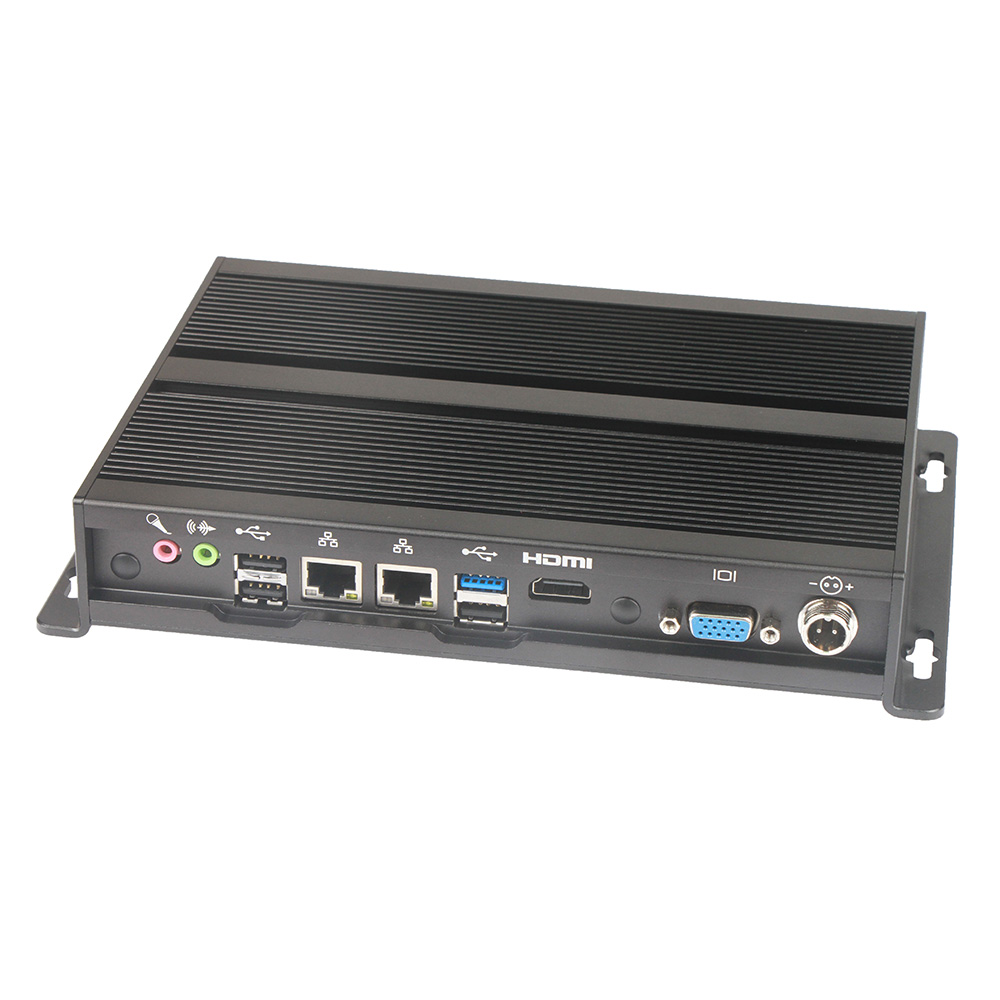

| I/O Ports | |||
| USB | 3*USB 2.0+1*USB 3.0 | Display | 1*VGA、1*HD |

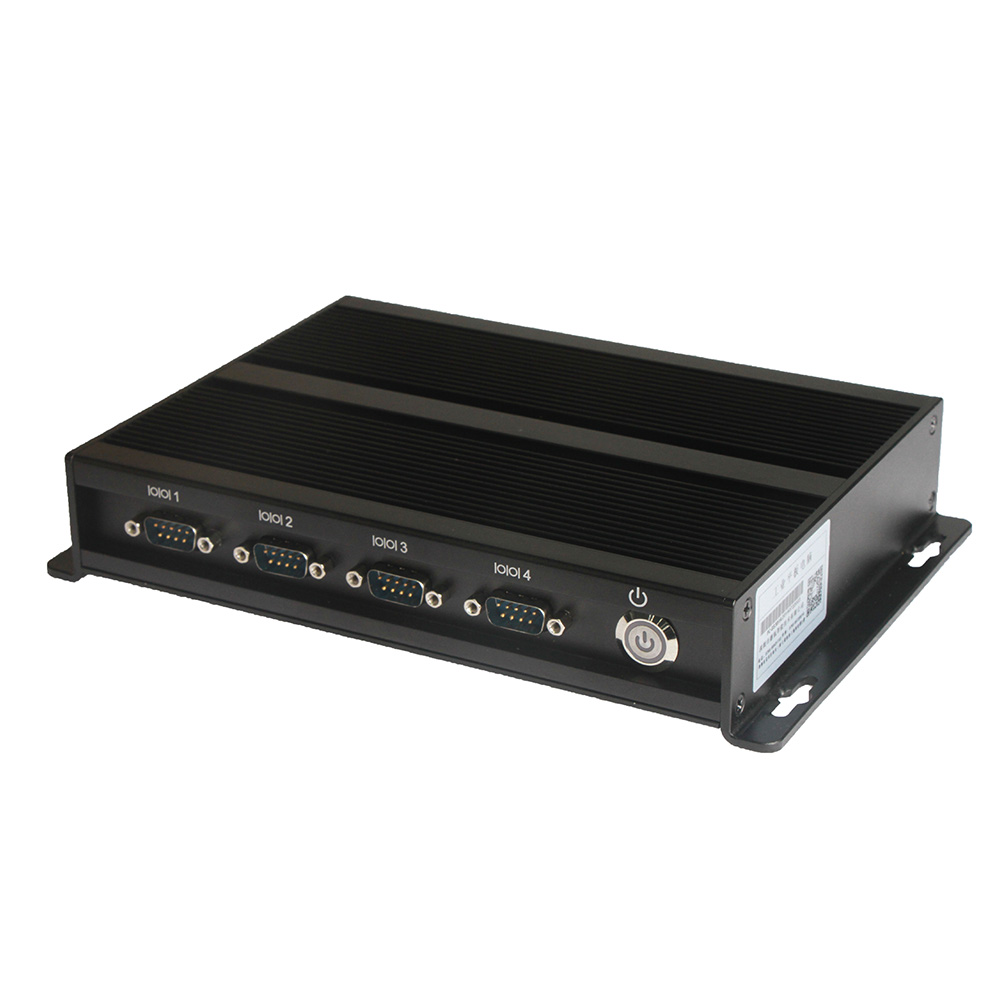

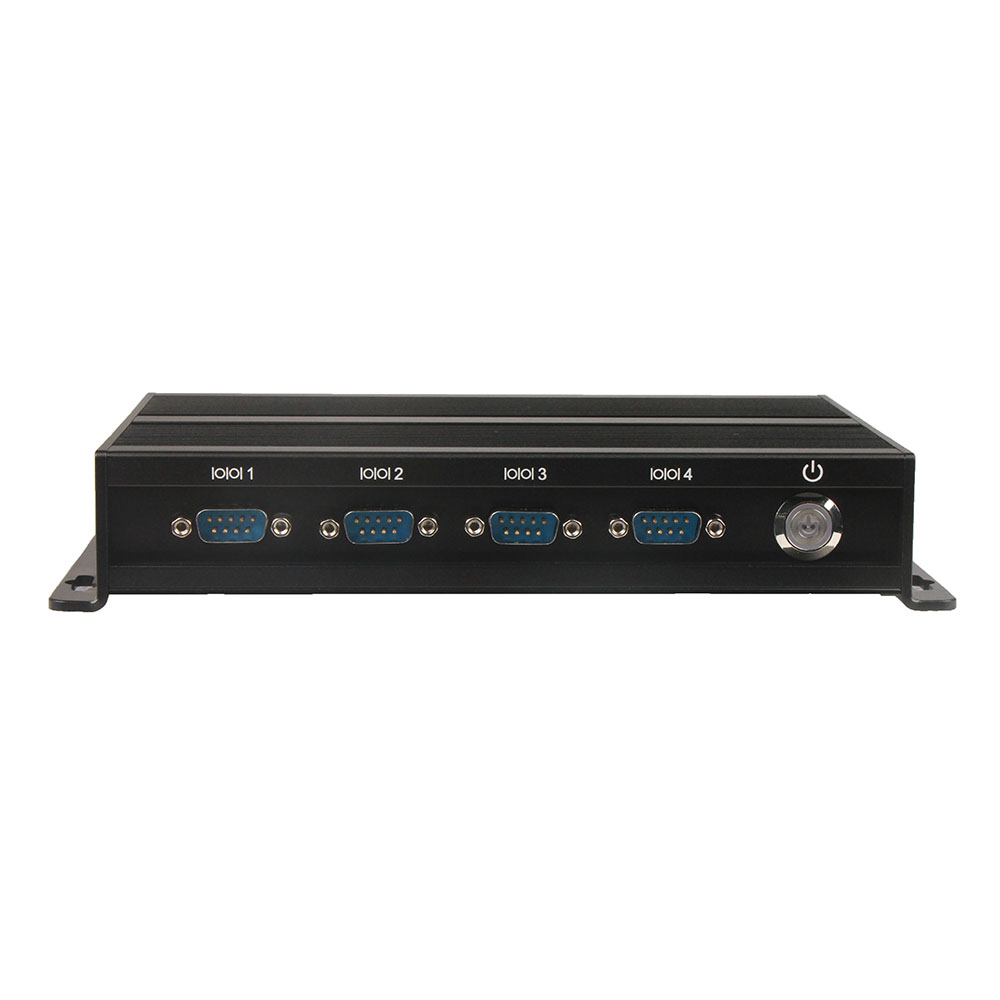

| COM | 4*RS232(1-2*RS482/RS422 optional) | GPIO | 4 input/4 output optional (reduce 1 DB9 COM) |
| Ethernet | 2*Intel® GbE RJ45 1000M | MiniPCIE | 1*MINI PCIe(WIFI/BT/4G) |
| Audio | 1*Line-out+1*Mic | ||
| Environment | |||
| Vibration Protection | 5-19Hz/1.0mm amplitude 19-200Hz/1.0g acceleration | Operating Temp. | -20℃～60℃, with air flow |
| Shock Protection | acceleration 10g/11ms | Storage Temp. | -40℃～70℃ |
| Reliability | MTBF≥50000h; MTTR≤0.5h | Humidity | 95% @40℃, non-condensing |
| Mechanical | |||
| Dimension (LxWxH) | 208mm*154 mm*37mm | Material | Aluminum alloy fanless design |
| Weight | 1.1kg/2.0kg(N.W/G.W) | Color | Black |
