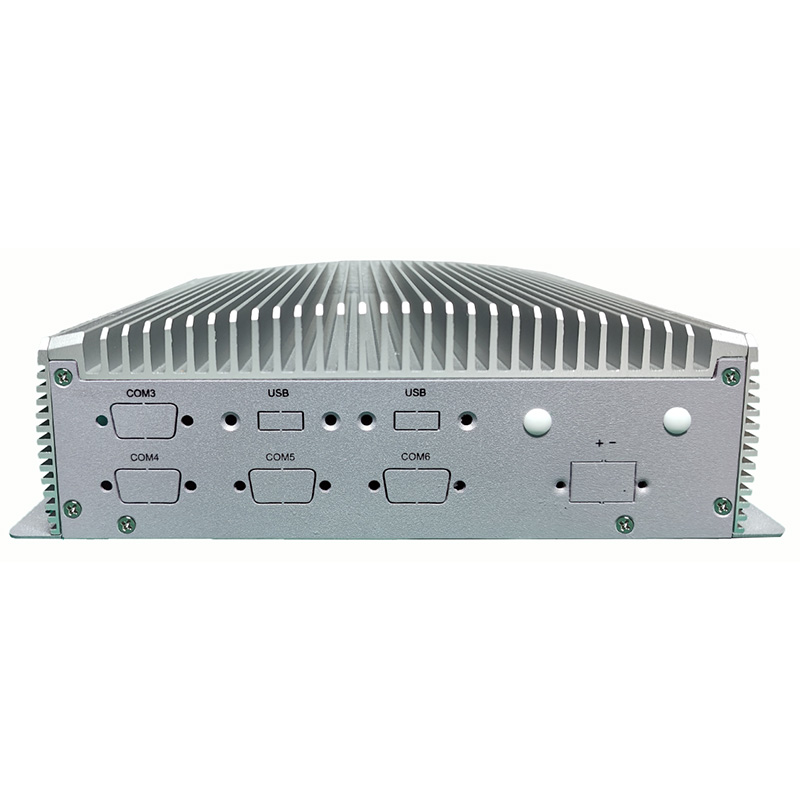

Category: Box PC, Compact Embedded Box PC
| System Hardware | |||
| Chipset |
Optional 8th/11th/12th Gen i3/i5/i7, N97 |
Storage |
M.2 SATA/NVME SSD (Optional 128GB/256GB/512GB/1T/2T/4T) |
| Memory |
DDR4 (N97 supports up to 16GB, 8th/11th Gen supports up to 32GB, 12th Gen supports up to 64GB) |
Watchdog |
0-255 seconds/level implemented through system software |
| OS | |||
| OS |
Windows 10/11、Linux |
||
| I/O Ports | |||
| USB |
4*USB3.0 MAX Optional 4*USB3.0+2*USB2.0 |
Optional |
Optional dual band WIFI/Bluetooth (with external antenna) |
| Serial Port |
2*RS232, MAX optional 6 serial ports (up to 3*RS485/RS422) |
Video |
1*HDMI,1*VGA |
| LAN |
2*10/100/1000M RJ45 |
Audio |
Mic in,Line out |
| GPIO |
Optional 4in+4out+VCC+GND |
||
| Power | |||
| Power Input |
Standard power adapter (optional 9-36V voltage input, optional Phoenix terminal 2pin input) |
||
| Environment | |||
| Vibration Protection |
5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
Operating Temp. |
-10 ℃~60 ℃, surface air flow |
| Shock Protection Reliability |
10g acceleration, 11ms cycle MTBF ≥ 50000h; MTTR ≤ 0.5h |
Storage Temp. |
-20 ℃~70 ℃ |
| Humidity |
95% @ 40 ℃, no condensation |
IP Rating |
IP52 |
| Mechanical | |||
| Dimension (WxHxD) | 235*220*70.5mm |
Material |
All metal fanless design |
| Weight |
2.5kg/2.9kg (N.W./G.W.) |
Mounting |
Fixed installation of bracket |
| Color |
Silver |
||
| Ordering Information: | |||
| Serial Number |
Model |
CPU |
Notes |
| 1 | PC-GS5083B |
i3-8145U | he CPU may change based on the market Please consult the sales for the specific CPU before placing the order |
| 2 | PC-GS5085B |
i5-8257U | |
| 3 | PC-GS5087B |
i7-8269U/8569U | |
| 4 | PC-GS50113B |
i3-1125G4 | |
| 5 | PC-GS50115B |
i5-1135G7 | |
| 6 | PC-GS50117B |
i7-1195G7 | |
| 7 | PC-GS50123B |
i3-1215U | |
| 8 | PC-GS50125B |
i5-1235U | |
| 9 | PC-GS5097B |
N97 | |
