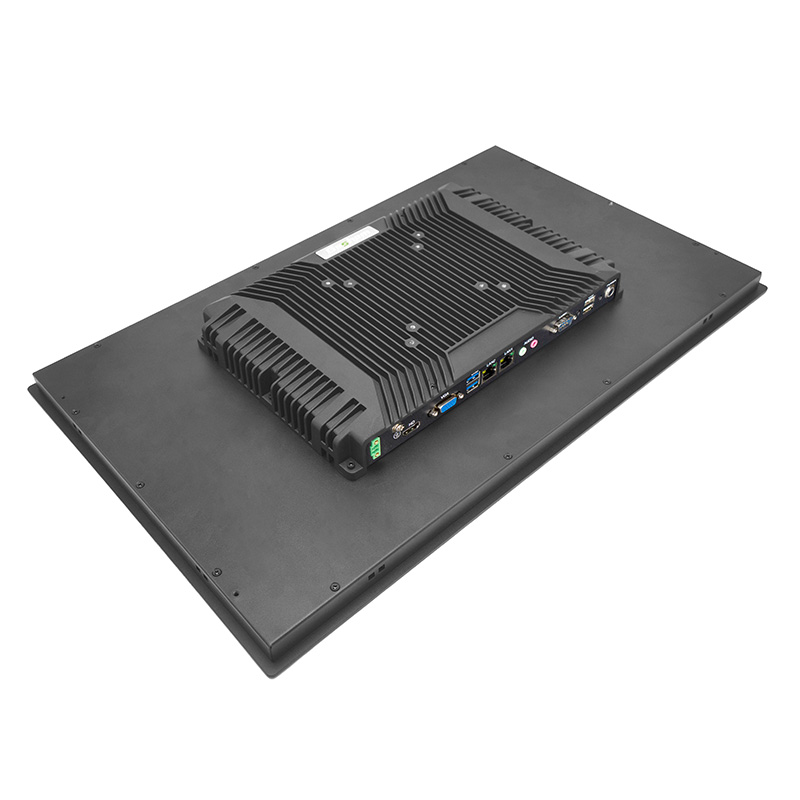

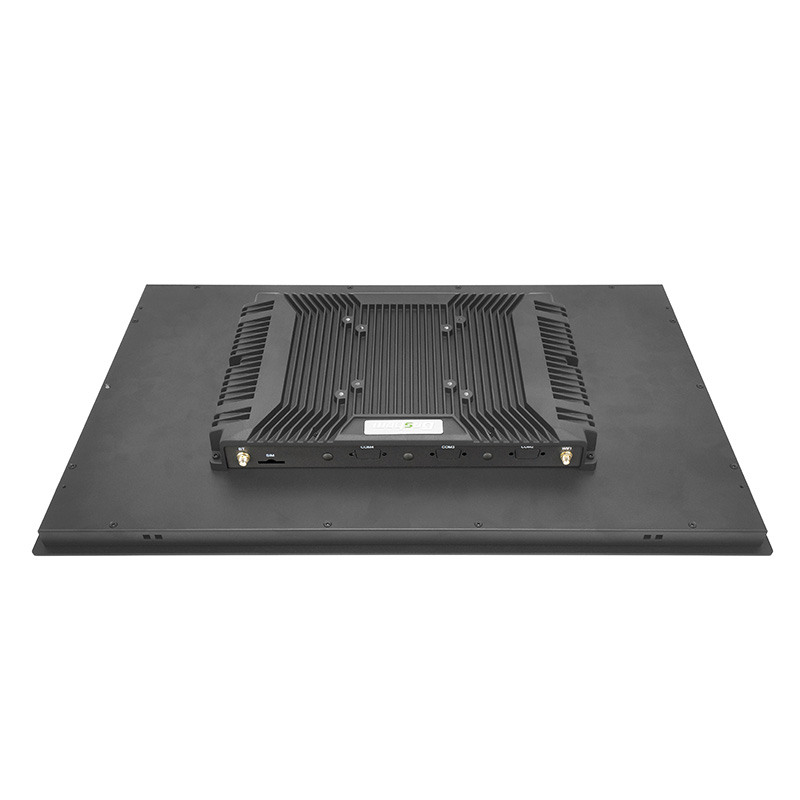

21.5 Inch Economy Capacitive Panel PC is engineered for industrial environments that require stable computing performance, responsive touch interaction, and reliable long-term operation. Powered by Intel® 12th Gen Alder Lake i3/i5/i7 processors and optional N97 solutions, this industrial panel PC delivers efficient processing capability for smart manufacturing, logistics automation, medical systems, transportation control, and intelligent building management.
The large 21.5-inch industrial display provides a wider visual workspace for monitoring systems, HMI interfaces, and industrial data management platforms. Combined with a multi-point capacitive touch screen, operators can achieve smooth and accurate control even in fast-paced industrial environments.
| System Hardware | |||
| CPU |
Intel® Processor Core™ 12th Gen i3/i5/i7 |
Memory |
DDR4 (optional 8/16/32/64GB,max 16GB for N97) |
| Watchdog |
0-255 seconds/grading implemented through system software |
Storage |
M.2 2280 NVME SSD (optional 128/256/512GB/1T/2T/4T) |
| Display | |||
| LCD Type |
21.5″ |
Luminance |
300 cd/m2 |
| Max. Resolution |
1920*1080 |
Contrast Ratio |
1000: 1 |
| Touchscreen Type |
21.5" Multi point capacitive touch screen |
||
| OS | |||
| OS |
Windows 10/11、 Ubuntu | ||

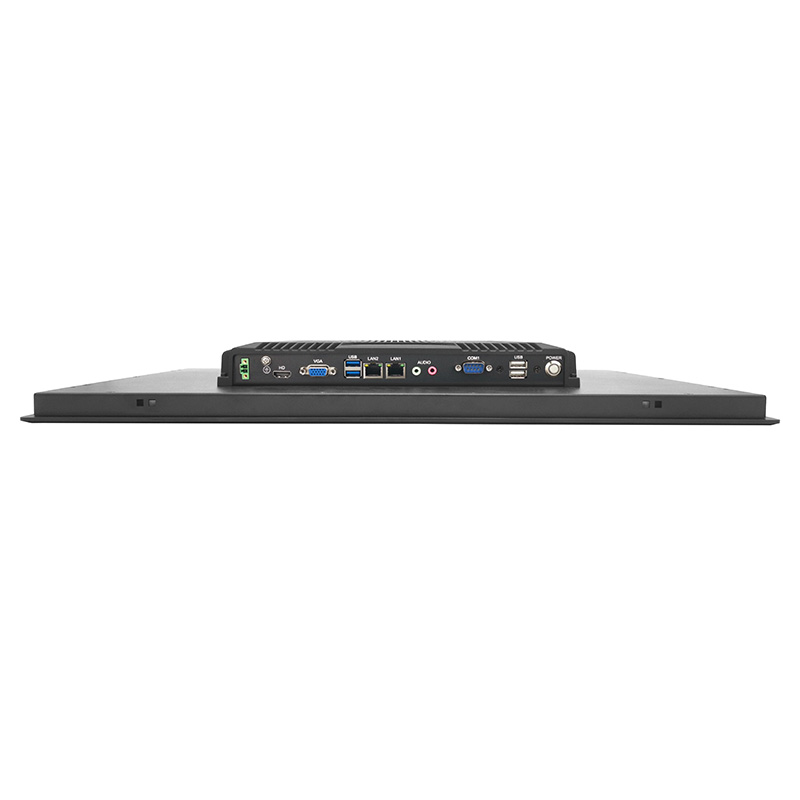

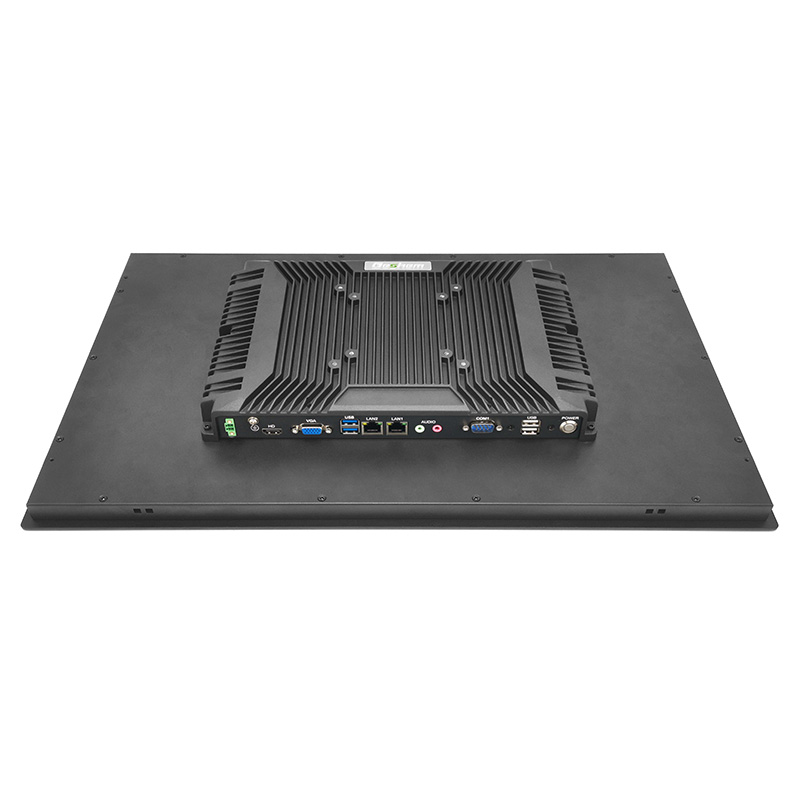

| I/O Ports | |||
| USB |
2*USB3.2, 2*USB2.0(optional USB3.0) |
Audio |
1*Line out, 1*MIC in |
| Serial port |
1*RS232 Optional additional |
Video |
1*VGA +1*HD |
| LAN |
2*1Gbe RJ45(Realtek） |
Expansion Slot |
Optional dual band WIFI/BT, optional 4G/5G communication |
| GPIO |
Customizable 4in+4out+VCC+GND |
SIM Card |
Optional with 4G/5G |
| Power | |||
| Power Input |
Standard Phoenix terminal(Optional Auto power on & 9-36V wide voltage input) | ||
| Environment | |||
| Vibration Protection |
5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
Operating Temp. |
-10℃～60℃, Surface air flow |
| Shock Protection Reliability |
10g acceleration, 11ms cycle MTBF ≥ 30000h; MTTR ≤ 0.5h |
Storage Temp. |
-20 ℃~70 ℃ |
| Humidity |
95% @ 40 ℃, no condensation |
IP Rating |
IP65 |
| Mechanical | |||
| Dimension (WxHxD) | 540.3mm*331.7mm*57.2mm |
Material |
All metal fanless design |
| Weight | 6.3kg/6.8kg(N.W./G.W.) |
Mounting | VESA Installation: 75*75mm/100*100mm Embedded Installation: 526.30mm*317.70mm |
| Color |
Black |
||
| Ordering Information: | |||
| Serial Number |
Model |
CPU |
Notes |
| 1 | TY215-GS123B |
i3-1215U |
The CPU may change based on the market Please consult the sales for the specific CPU before placing the order |
| 2 | TY215-GS125B |
i5-1235U | |
| 3 | TY215-GS127B |
i7-1255U | |
| 4 | TY215-GSN97B |
N97 | |
