If you need a compact computer for industrial equipment, transportation systems, or embedded control, choosing the right hardware means balancing connectivity, power consumption, and environmental requirements. A j1900 mini pc offers a practical option for applications that need serial communication, Ethernet connectivity, and a space-saving design rather than high-end computing performance.

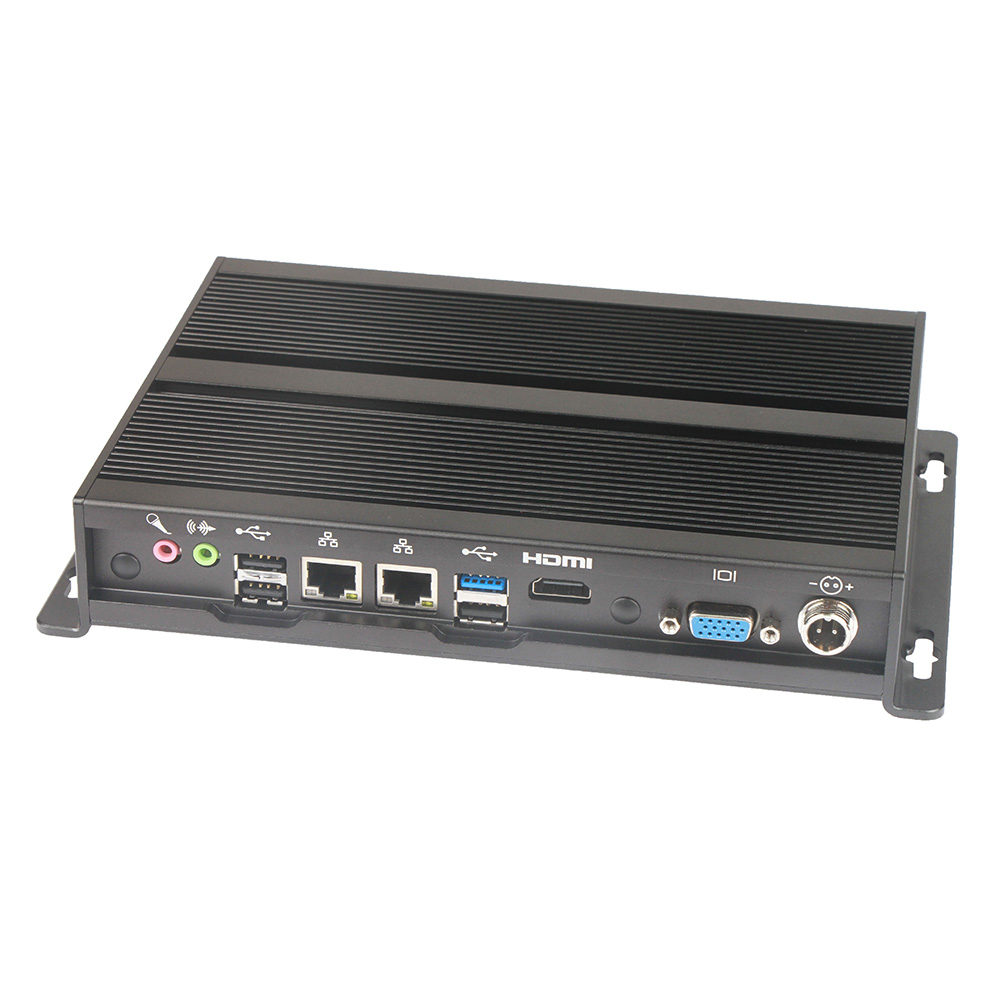

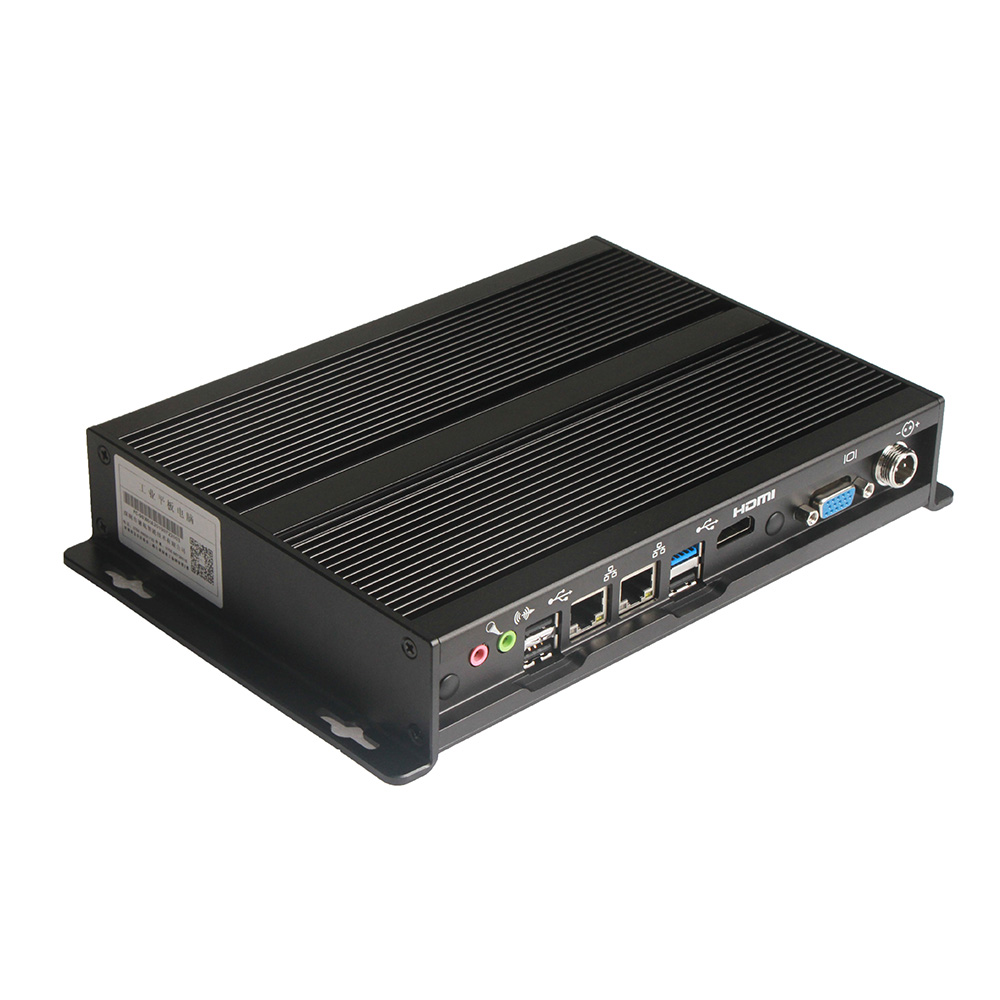

The Slim J1900 Aluminum Alloy Box PC from Geshem combines an Intel® Celeron® J1900 processor running at 2.0 GHz with a fanless aluminum housing, multiple I/O ports, and flexible storage configurations. Its compact 208 × 154 × 37 mm chassis supports integration into equipment cabinets and industrial workspaces. In addition, its sealed metal enclosure helps protect internal components against dust and moisture, making it worth evaluating for industrial environments with appropriate installation conditions.

What Makes the Geshem J1900 Mini PC Suitable for Industrial Use?

The J1900 industrial mini PC is designed for applications where stable connectivity, compact dimensions, and straightforward system integration matter more than intensive computing workloads.

Fanless Aluminum Alloy Design

The enclosure uses an aluminum alloy construction with a fully sealed, fanless design. By eliminating the cooling fan, the computer avoids fan-related mechanical wear and reduces the need for fan maintenance.

Key physical characteristics include:

• Dimensions: 208 × 154 × 37 mm

• Material: Aluminum alloy

• Color: Black

• Net weight: 1.1 kg

• Operating temperature: -20°C to 60°C with airflow

• Storage temperature: -40°C to 70°C

Although the enclosure is designed to resist dust and moisture, the product specifications do not state an IP rating. You should confirm the required protection level with Geshem before installing the unit in washdown areas or other demanding environments.

Intel J1900 Processor and Flexible Storage

The computer uses the Intel® Bay Trail J1900 processor with a clock speed of 2.0 GHz. It comes with 2GB DDR3L memory and supports up to 8GB, allowing you to select a suitable memory configuration for your application.

Storage options include 64GB, 128GB, and 512GB SSDs. The system supports Windows 7, Windows 8, Windows 10, and Linux, providing flexibility for compatible industrial software and existing equipment.

This configuration can suit basic monitoring, serial data collection, equipment communication, and lightweight industrial control tasks. However, you should assess the software’s CPU, memory, and operating system requirements before selecting this model for a specific workload.

J1900 Mini PC Specifications and Connectivity

For industrial integration, available interfaces can determine whether a computer connects directly to your existing equipment or requires additional hardware.

Multiple COM Ports for Equipment Communication

The four RS232 serial ports are useful when your system needs to communicate with several devices. Depending on your configuration, optional RS422 or RS485 support may help accommodate equipment that uses those serial communication standards.

Potential connected equipment includes:

• Industrial controllers and automation devices

• Serial data acquisition equipment

• Transportation monitoring systems

• Industrial instruments and communication gateways

The dual Gigabit Ethernet ports also provide two network interfaces for connecting compatible devices or separating network connections. Actual network architecture depends on your software and installation requirements.

How Does a J1900 Box PC Compare With Other Industrial Computers?

Different industrial computer formats serve different installation needs. Consider the following comparison when selecting hardware for your project.

A J1900 box PC is a practical choice when you already have a display or need to install computing hardware inside an equipment enclosure. If your application requires a touchscreen, portable operation, or rack installation, another product category may fit better.

Industrial Applications for a Fanless J1900 Mini PC

Geshem supplies industrial computing products for sectors including transportation, logistics, warehousing, agriculture, and IoT. The Slim J1900 model may fit selected applications within these sectors, depending on the required workload and environmental conditions.

Transportation and Monitoring Systems

The combination of serial ports, dual Ethernet, and VGA/HDMI outputs supports integration into compatible transportation monitoring equipment. You can evaluate the available interfaces against the communication requirements of your existing devices.

Warehouse and Logistics Equipment

A compact embedded computer can support equipment monitoring, data collection, and communication between compatible peripherals and network systems. Optional SSD configurations also provide choices for applications with different local storage requirements.

Industrial Automation and IoT

The four COM ports and Mini PCIe expansion slot offer options for connecting serial devices and adding supported wireless communication modules. Before deployment, check driver availability, operating system compatibility, and the required wireless module.

How to Select the Right J1900 Industrial Mini PC

Follow these steps before requesting a quotation or placing an order.

1. Define your workload. List the software, connected devices, and processing requirements. Confirm that the J1900 platform can handle the intended tasks.

2. Check the I/O configuration. Determine how many USB, COM, Ethernet, and display connections you need. Confirm optional RS422/RS485 support if required.

3. Choose memory and storage. Select between the standard 2GB memory and supported upgrades up to 8GB, then specify the appropriate SSD capacity.

4. Verify installation conditions. Review the DC power input, ambient temperature, airflow, dust and moisture exposure, and available mounting space.

5. Confirm customization and compatibility. Contact Geshem to discuss supported hardware options, software requirements, and any OEM/ODM integration needs before finalizing the configuration.

FAQ

1. Does the J1900 mini PC support Windows and Linux?

Yes. The listed operating systems include Windows 7, Windows 8, Windows 10, and Linux. Confirm the specific version, drivers, and software compatibility required for your project.

2. Can I customize the memory and storage?

The product supports up to 8GB DDR3L memory and optional 64GB, 128GB, or 512GB SSD storage. Contact Geshem to confirm availability for your preferred configuration.

3. Is this fanless industrial PC suitable for outdoor installation?

The unit has a sealed aluminum enclosure designed to resist dust and moisture, with a listed operating temperature of -20°C to 60°C when airflow is provided. However, no IP rating is specified. Outdoor deployment requires verification of ingress protection, humidity, temperature exposure, and installation conditions.

Conclusion

The Geshem Slim J1900 Aluminum Alloy Box PC offers a compact option for applications that need a j1900 mini pc with four serial ports, dual Gigabit Ethernet, fanless cooling, and flexible SSD storage. Its suitability depends on your software workload, connection requirements, and operating environment. By checking these factors before purchase, you can determine whether this industrial box PC meets your integration requirements.

CTA

Contact Geshem to discuss your industrial computing project, confirm the available hardware configuration, and request a quotation for the Slim J1900 Aluminum Alloy Box PC. Share your required interfaces, operating system, memory, storage, and installation conditions to help the team assess a suitable configuration.
