When you need an Industrial Display with Touchscreen, a standard monitor may not provide the computing power, connectivity, or environmental protection your application requires. Geshem’s 21.5-inch capacitive touch Panel PC combines a 1920×1080 industrial display, Intel® 11th Gen i3/i5/i7 processors, fanless all-metal construction, and an IP65 front panel in one system. You can use it for factory automation, logistics, transportation, medical equipment, building monitoring, and other industrial environments. With 9–36V wide-voltage input and multiple I/O options, the system also gives you flexibility when integrating it into an existing control cabinet or workstation.

Why Choose an Industrial Display with Touchscreen?

A conventional display only provides visual output. An industrial Panel PC can combine display, touch control, processing, and connectivity in a single enclosure, helping you simplify system integration.

Geshem’s 21.5-inch model uses a multi-point capacitive touchscreen with more than 85% light transmission and 6H surface hardness. The 250 cd/m² display provides a 1920×1080 resolution, while the screen has a rated lifespan of 50,000 hours.

For industrial installations, the front-panel IP65 rating helps protect the display interface against dust and water exposure. The all-metal fanless design also eliminates the need for a cooling fan, which can reduce a potential source of mechanical wear and dust accumulation.

Key Specifications at a Glance

  • Display: 21.5-inch LCD
  • Resolution: 1920×1080
  • Touch: Multi-point capacitive touchscreen
  • Processor: Intel® 11th Gen i3/i5/i7
  • Memory: 8GB DDR4, expandable to 16GB or 32GB
  • Storage: Optional 128GB–1TB M.2 2280 SATA SSD
  • Power: 9–36V DC wide-voltage input
  • Front Protection: IP65
  • Operating Temperature: -10°C to 60°C
  • Construction: All-metal fanless design
  • Mounting: VESA 100×100mm or embedded installation
  • Operating Systems: Windows 10, Windows 11, Linux

21.5-Inch Industrial Touchscreen Display for Real Applications

You can deploy this industrial touchscreen display where operators need both computing capability and direct visual control.

In a manufacturing line, for example, the Panel PC can display production data while allowing operators to interact with machine-control software through the capacitive touchscreen. The 9–36V input also makes it suitable for industrial electrical systems where supply conditions vary.

For logistics and warehousing, you can connect scanners, network equipment, and other peripherals through the available interfaces. The system provides six USB 3.0 ports, four RS232 ports with optional RS485/RS422, two Gigabit LAN ports, HDMI, and VGA.

For transportation or building monitoring applications, optional dual-band Wi-Fi/Bluetooth or 4G connectivity can support wireless communication. Meanwhile, the fanless design and IP65 front panel provide practical advantages for installations that require a more protected interface.

Industrial Display with Touchscreen vs. Standard Display

Feature Geshem 21.5″ Panel PC Standard Industrial Display
Touchscreen Multi-point capacitive Depends on model
Computing Intel 11th Gen i3/i5/i7 Usually requires external PC
Resolution 1920×1080 Model dependent
Front Protection IP65 Model dependent
Power Input 9–36V DC Model dependent
I/O USB, RS232, LAN, HDMI, VGA Usually fewer computing interfaces
Operating System Windows 10/11, Linux Not applicable
Mounting VESA / embedded Model dependent
Customization OEM/ODM available Depends on supplier

This difference matters when you want to reduce the number of separate components in an industrial workstation. Instead of pairing a monitor with an external computer, you can use an integrated Panel PC.

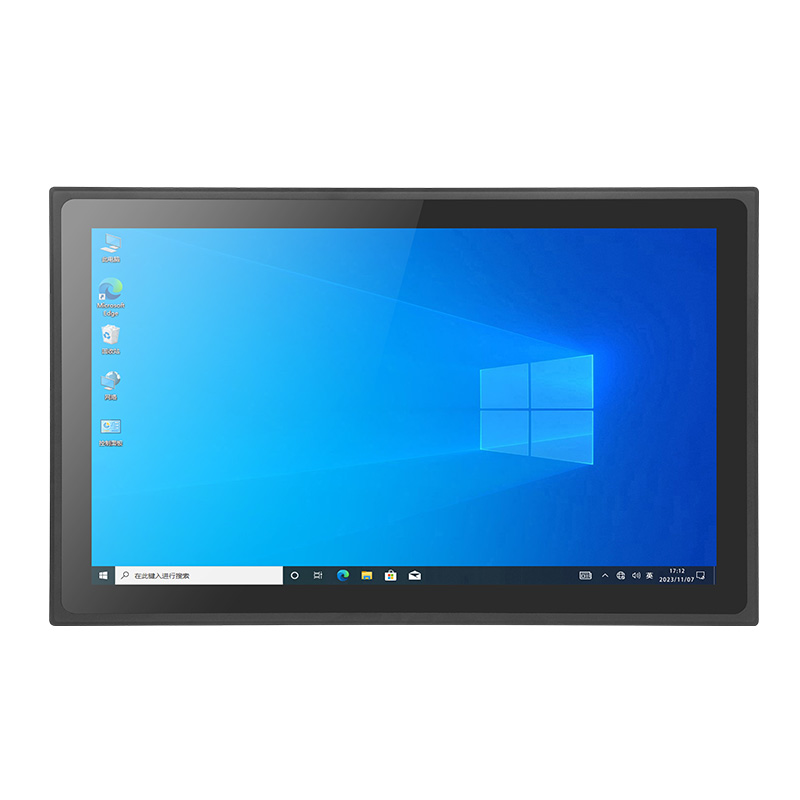

21.5 inch industrial display

How to Select the Right Industrial Touchscreen Panel PC

Before purchasing an industrial display with touchscreen, you should evaluate the complete application rather than focusing only on screen size.

1. Define the Processing Requirement

Choose between the Intel 11th Gen i3, i5, and i7 configurations according to your software workload. For basic HMI and monitoring tasks, an i3 configuration may be sufficient, while more demanding industrial applications can use i5 or i7 options.

2. Check the Touch and Display Requirements

Confirm the required screen size, resolution, brightness, touch technology, and surface hardness. The Geshem model provides a 21.5-inch screen, 1920×1080 resolution, 250 cd/m² luminance, and 6H touchscreen hardness.

3. Match the Interfaces

Review your existing devices before ordering. This model provides six USB 3.0 ports, four RS232 ports, optional RS485/RS422, two 100/1000M LAN ports, HDMI, VGA, and optional wireless communication.

4. Verify Environmental Conditions

Check temperature, humidity, vibration, shock, and water or dust exposure. The Panel PC operates from -10°C to 60°C, supports 95% humidity at 40°C without condensation, and provides an IP65-rated front panel.

5. Confirm Installation and Customization

You can select VESA 100×100mm mounting or embedded installation. Geshem also provides OEM/ODM customization covering hardware configurations, communication interfaces, mounting requirements, and software customization.

Why Choose Geshem for Industrial Panel PC Solutions?

Shenzhen Geshem Technology Co., Ltd. has operated in industrial computing since 2012, providing OEM/ODM products and industrial computing solutions for customers in multiple regions.

Geshem’s product portfolio covers Industrial Panel PCs, Embedded Box PCs, Industrial Monitors, Rugged Tablets, Military Laptops, Rackmount PCs, Handheld Terminals, and Industrial Motherboards. The company also operates a German branch established in 2019 and serves customers across Europe, North and South America, the Middle East, Australia, and Southeast Asia.

Its documented development history includes ISO 9000 and ISO 14000 certification in 2012, national high-tech enterprise certification in 2013, and military-related qualifications and certifications associated with its rugged computing products. Geshem also maintains R&D, laboratory, production, warehouse, and service capabilities to support customized industrial computing projects.

FAQ

1. Is this Industrial Display with Touchscreen suitable for factory automation?

Yes. The 21.5-inch capacitive touchscreen, Intel processor options, multiple serial ports, Gigabit LAN, and 9–36V input make it suitable for HMI, machine monitoring, production control, and automation interfaces.

2. Can I customize the 21.5-inch Panel PC?

Yes. Geshem supports OEM/ODM customization. You can discuss CPU configuration, memory, storage, communication interfaces, mounting, wireless connectivity, and software requirements with the sales team.

3. Does the Panel PC support harsh industrial environments?

The system uses an all-metal fanless enclosure and an IP65 front panel. Its specified operating temperature is -10°C to 60°C, with vibration and shock protection parameters provided in the product specifications.

Conclusion

If you need an Industrial Display with Touchscreen that combines a large 21.5-inch display, capacitive touch control, Intel 11th Gen processing, industrial I/O, wide-voltage power input, and IP65 front-panel protection, this Geshem Panel PC provides a practical platform for industrial automation, logistics, transportation, medical, and monitoring applications. You can also work with Shenzhen Geshem Technology Co., Ltd. to configure the system around your application requirements instead of selecting a fixed consumer-grade computer.

CTA

For your next industrial HMI or Panel PC project, contact Geshem with your required screen size, CPU, operating system, I/O ports, mounting method, and operating environment. Geshem’s engineering team can help you confirm the suitable configuration and discuss OEM/ODM customization before production.
