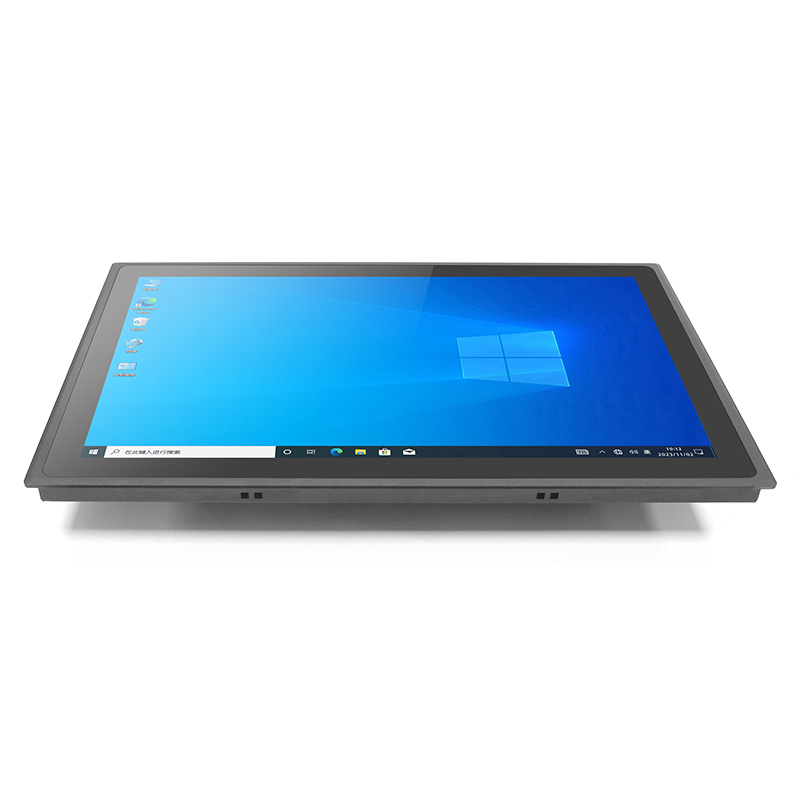

The 18.5 Inch Capacitive Panel PC is a highly versatile and durable solution, designed for a range of industrial environments. Powered by the Intel® Core™ 11th Gen processors (i3, i5, or i7), it offers exceptional performance for various applications such as industrial automation, medical monitoring, transportation systems, and more.
High-Resolution 18.5″ Display: The panel PC comes with a large 18.5-inch industrial display screen, providing a clear and vibrant visual experience in harsh environments.
Multi-Point Capacitive Touch: The multi-point capacitive touchscreen enables responsive interaction, even in demanding industrial environments, improving productivity and user experience.
Intel® Core™ 11th Gen Processors: Choose from Intel® i3, i5, or i7 processors, offering robust performance for various computing tasks. Perfect for applications requiring high processing power.
Expandability: It comes with 8GB DDR4 RAM, expandable to 32GB, ensuring smooth multitasking and optimal performance in complex industrial applications.

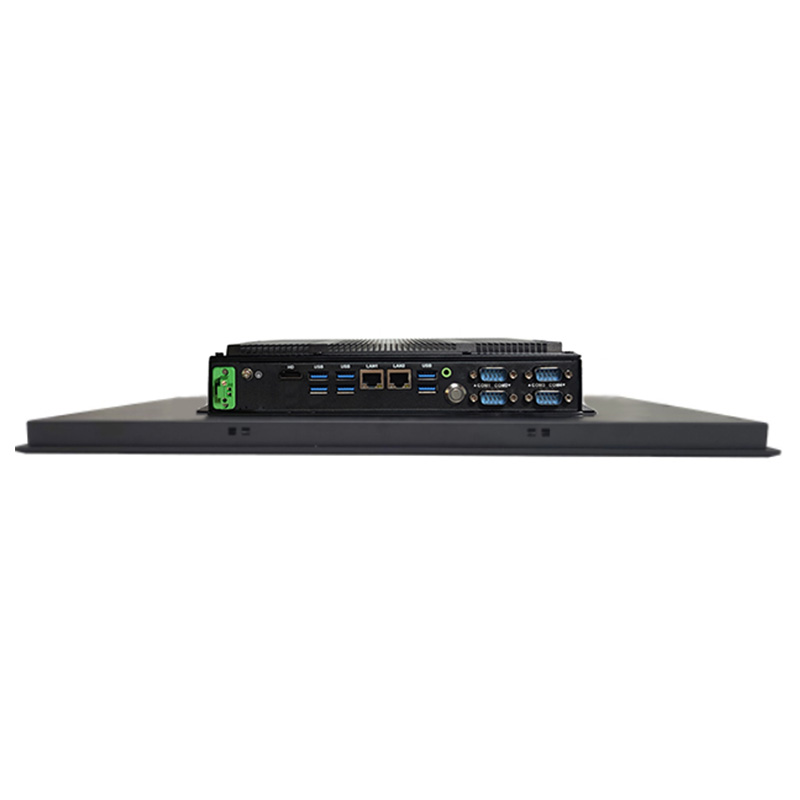

Wide Connectivity Options: The panel PC features 6 USB 3.0 ports, 4 RS232/RS485/RS422 serial ports, and optional dual-band WiFi + BT/4G communication for seamless connectivity in any industrial or business setting.
IP65 Waterproof and Oil-Proof: With an IP65-rated front panel, the panel PC is built to withstand dust, water, and oil, ensuring reliability even in challenging industrial environments.
This Economy Capacitive Panel PC is designed with all-metal construction, providing strength and durability. It supports customization options to meet your specific industry needs. Whether for smart agriculture, public transportation, or logistics warehousing, this panel PC delivers reliable and long-lasting performance.
With a wide 9-36V power input, the 18.5 Inch Capacitive Panel PC can operate across various industrial power configurations, making it a versatile solution for demanding environments.
| System Hardware | |||
| CPU |
Intel® Processor Core™ 11th Gen i3/i5/i7 |
Memory |
1*DDR4 8GB (optional 16/32GB) |
| Watchdog |
0-255 seconds/grading implemented through system software |
Storage |
Optional 128GB-1T M.2 2280 SATA SSD |
| Display | |||
| LCD Type |
18.5″ |
Luminance |
300 cd/m2 |
| Max. Resolution |
1366*768/1920*1080 |
Screen lifespan |
50000h |
| Touch Screen | |||
| Touch Screen |
18.5 "multi-point capacitive touch screen |
hardness |
6H |
| light transmission |
＞85% |
||
| OS | |||
| OS |
Win10,Win11,Linux | ||
| I/O Ports | |||
| USB |
6*USB3.0 |
Audio |
2 in 1 Audio |
| Serial port |
4*RS232(Optional 1-4*RS485/422) |
Video |
1*HDMI+1*VGA |
| LAN |
2*100/1000M |
Expansion Slot |
Optional dual band WiFi+BT or 4G |
| Power | |||
| Power Input |
Standard Phoenix terminal 2pin input, supports 9-36V wide voltage | ||
| Environment | |||
| Vibration Protection |
5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
Operating Temp. |
-10℃～60℃, Surface air flow |
| Shock Protection Reliability |
10g acceleration, 11ms cycle MTBF ≥ 30000h; MTTR ≤ 0.5h |
Storage Temp. |
-20 ℃~70 ℃ |
| Humidity |
95% @ 40℃, no condensation |
IP Rating |
Front panel IP65 |
| Mechanical | |||
| Dimension (WxHxD) | 470mm*292mm*65mm |
Material |
All metal fanless design |
| Weight | 5.8kg/7kg(N.W./G.W.) |
Mounting | VESA Installation: 100*100mm Embedded Installation: 456mm*280mm |
| Color |
Black |
||
| Ordering Information: | |||
| Serial Number |
Model |
CPU |
Notes |
| 1 | TY185-GS113AH |
i3-1115G4 |
The CPU may change based on the market Please consult the sales for the specific CPU before placing the order |
| 2 | TY185-GS115AH |
i5-1135G7/1155G7 | |
| 3 | TY185-GS117AH |
i7-1165G7 | |
