Category: Economy Rouch Panel PC, Panel PC
| System Hardware | |||
| CPU | Intel® Whiskeylake Core™ I3 8145U processor (optional 8th Gen. i5/i7) | Memory | 8GB (optional 16/32GB) |
| Watchdog | 0-255 seconds/grading implemented through system software | Storage | 128GB SSD (optional 256/512GB) |

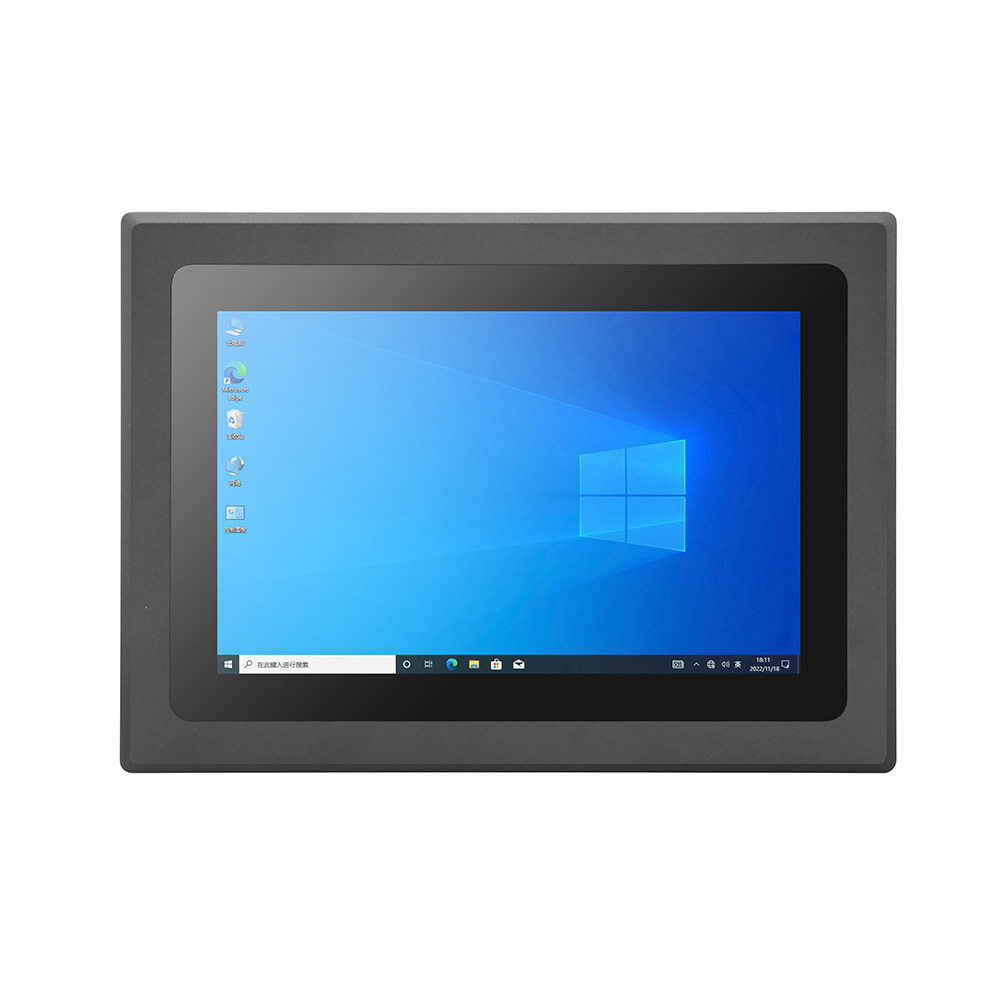

| Display | |||
| LCD Type | 10.1″ | Luminance | 350 cd/m2 |
| Max. Resolution | 1280*800 | Contrast Ratio | 800: 1 |
| Touchscreen Type | 10.1" Multi point capacitive touch screen | ||
| OS | |||
| OS | Windows 10、 Linux | ||

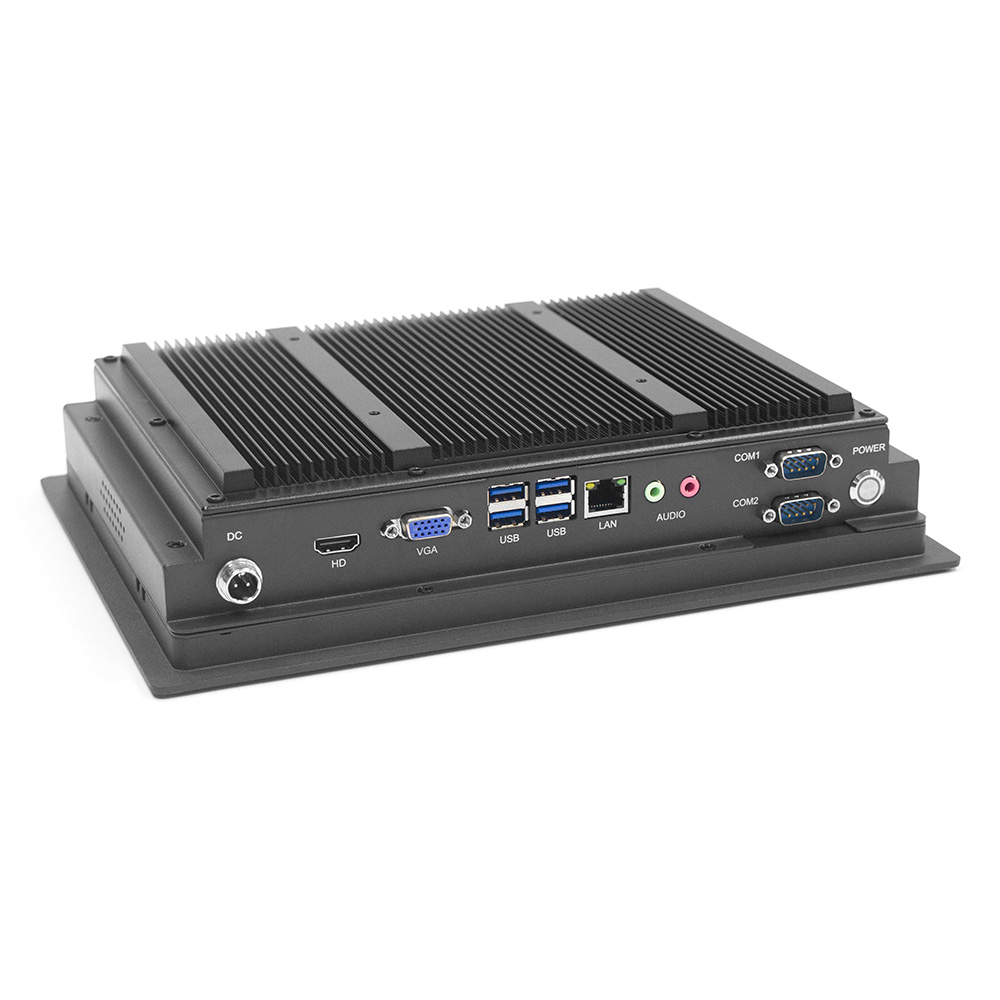

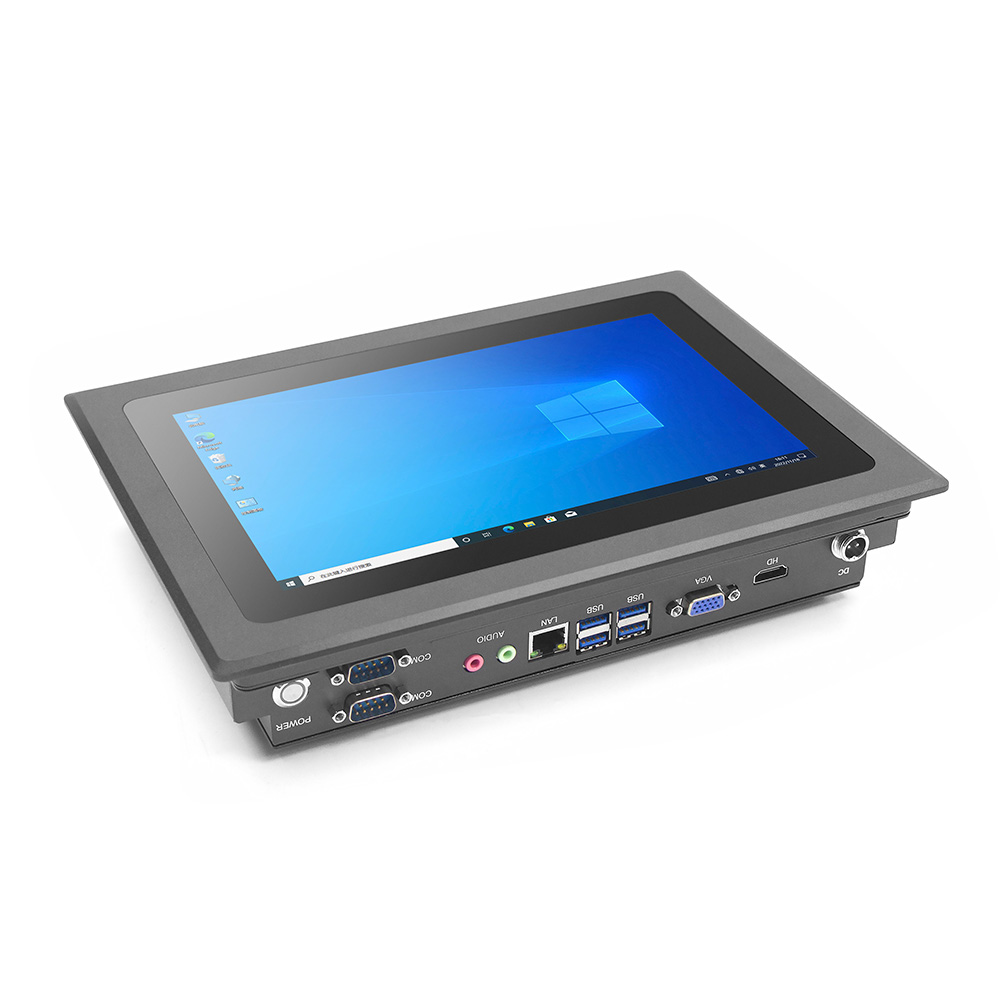

| I/O Ports | |||
| USB | 4*USB3.0 | Video | 1*HD, 1*VGA |
| Serial port | 2*RS232 (optional RS485/422, Phoenix terminal for multiple serial ports) | Expansion Slot | Optional dual band WIFI/BT, optional 4G communication |
| LAN | 1*1000M network interface (optional 2*1000M network interface) | SIM Card | Optional with 4G |
| Audio | Mic in, Line out | GPIO | 1*8bit DIO, occupying one DB9 interface |
| Power | |||
| Power Input | Standard 12V/5A aviation head adapter (optional 2PIN Phoenix terminal) | ||
| Environment | |||
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration | Operating Temp. | -10℃～60℃, Surface air flow |
| Shock Protection | 10g acceleration, 11ms cycle | Storage Temp. | -20℃～70℃ |
| Reliability | MTBF ≥ 30000h; MTTR ≤ 0.5h | Humidity | 95% @ 40℃, no condensation |
| IP Rating | Front panel IP65 | ||
| Mechanical | |||
| Dimension (WxHxD) | 290mm*210mm*60.7mm | Material | All metal fanless design |
| Weight | 2.5kg/2.9kg(N.W./G.W.) | Mounting | VESA Installation: 100mm*100mm Embedded Installation: 271.38mm*192.78mm |
| Color | Black | ||
