Category: Industrial ATX Motherboard, Industrial Motherboard

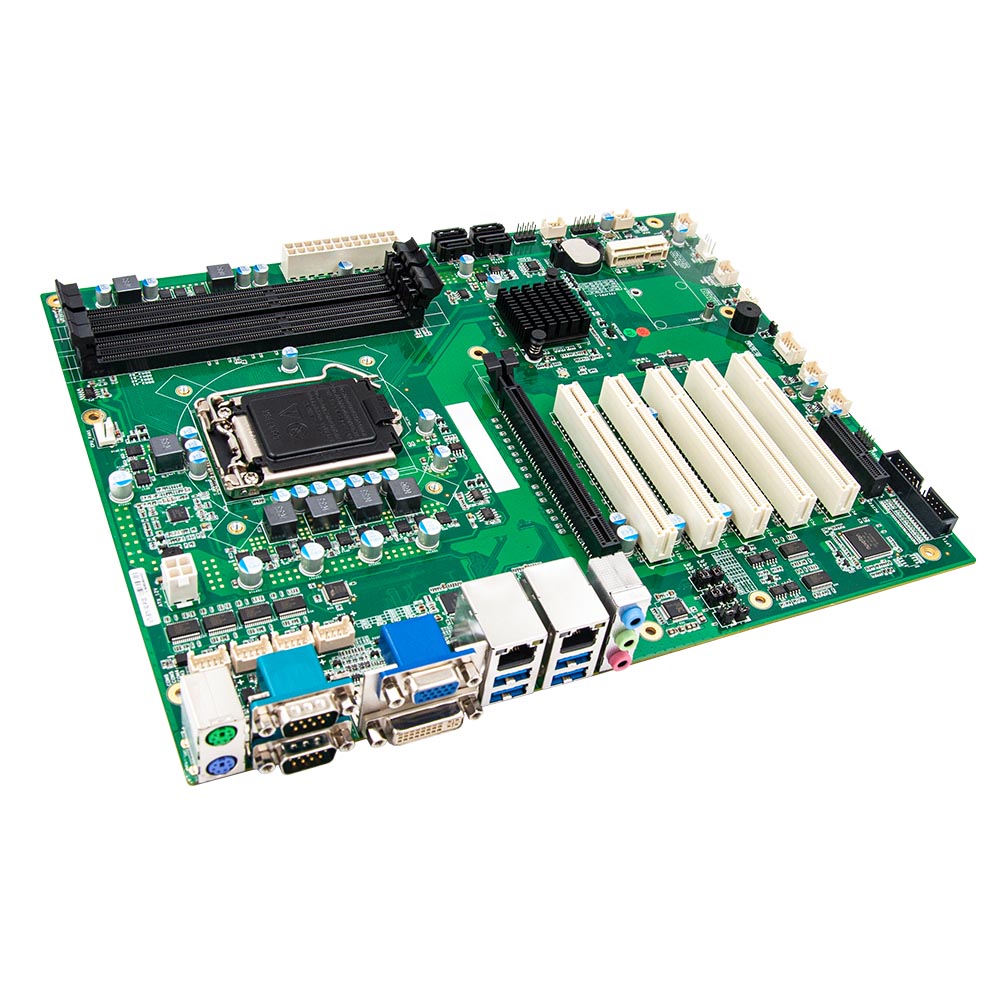

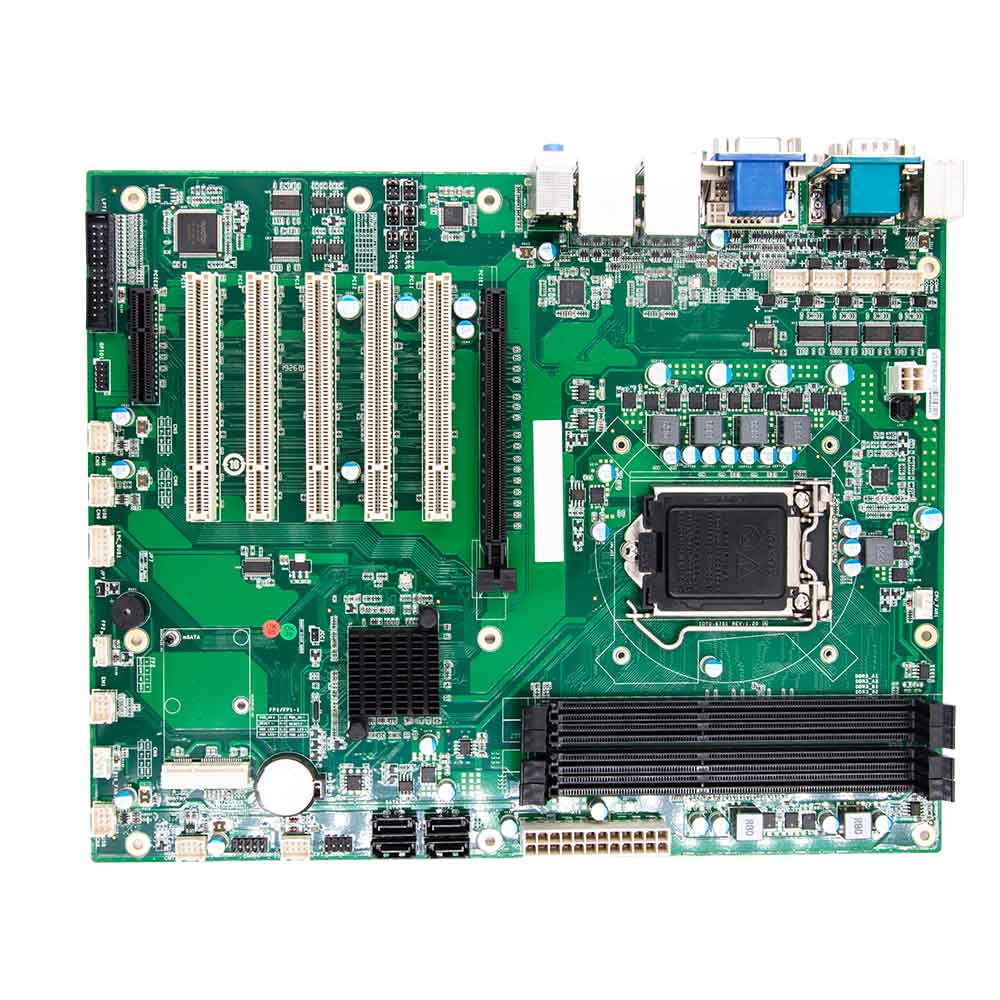

| Hardware Specifications | |||
| Processor | Support LGA1155 Gen 3 i3/i5/i7 CPU, support Pentium®/Celeron® CPU | RAM | Provide up to 4×240PIN DDR3 1333/1600MHz DIMM memory slots, single 8GB, maximum support 32GB |
| Chipset | Intel® B75 | Watchdog | 255 levels, programmable sec/min, support timeout interrupt or system reset |
| Memory | Provide 4×SATA interface (SATA1 supports SATA3.0 standard), 1 x mSATA slot can be configured as Mini-PCIe | Power Supply | Adopt ATX power supply, support S0, S1, S4, S5 |
| I/O Ports | |||
| Display Interface | Support 1×DVI-D, 1×VGA, support single display, dual display duplication, dual display expansion output; VGA supports maximum resolution 2048×1536@75HZ, 32bit color depth, DVI supports maximum resolution 1920×1200@60HZ | I/O Ports | 6×COM, expandable to 10×COM, of which COM1/2 supports RS-232/422/485 mode selection 8×USB2.0 ports, 4×USB3.0 ports are provided on the rear panel 1×PS/2 keyboard port, 1×PS/2 mouse port 1×8-bit GPIO 1×LPT interface |
| Expansion Bus | Provide 1×PCIe x16, support PCIe 3.0 specification; Provide 1×PCIe x4, support PCIe 2.0 specification; Provide 1×mSATA, can be configured as Mini-PCIe; Provide 4/5×32-bit native PCI, support PCI Rev2.3 standard | Audio | Adopt HDA standard, support rear panel Mic-in, Line-in, Line-out |
| LAN | Provide 2×Intel® 10/100/1000Mbps network interface | ||
| Environmental specifications | |||
| Operating temp. | -10℃～60℃; 5%～95% (non-condensing state) | Storage temp. | -20℃～80℃, 5%～95% (non-condensing state) |
| Mechanical | |||
| Dimensions (LxW) | 305mm*244mm | ||
| Ordering Information | |||
| ATX-GSB75K | ATX industrial motherboard/Intel® B75 platform/support LGA1155 Gen 3 i3/i5/i7/Pentium®/Celeron® CPU/2×DDR3 DIMM, maximum support 16GB memory/VGA+DVI dual display/4×SATA/dual Intel® Gigabit Ethernet port/ 8×USB2.0 /4×USB3.0 /6×COM (COM1/2 supports RS-232/422/485) /1×LPT/PS2 mouse/keyboard/HD Audio/1×8-bit GPIO/4×PCI /1×PCIe x4/1×PCIe x16/1×mSATA, can be configured as Mini-PCIe/standard ATX power supply | ||
| OS & Software Support | |||
| Standard OS | Ubuntu11.04 Red Hat® Enterprise Linux® 32 ,64 Windows XP, 7 SP1 ，8 , 8.1 ，10 WES 7 | ||
