Category: Android Rugged Tablet, Rugged Tablet
| System Hardware | |||
| CPU | MTK MT6771 Octa-core 2.0GHz |
Earpiece |
Waterproof earpiece |
| RAM+Storage | 4GB+64GB | Button |
Power button, Volume +/-, Customize function key: P Barcode scanner shortcut key: F |
| Camera | 5MP front camera with fixed focus 13MP rear camera with auto focus and LED light |
LED Indicator |
Charging indicator |
| Speaker |
Single speaker, 1W/8Ω |
Sensor |
Gsensor, Gyroscope, Ecompass, Distance sensor, Motor, Light sensor |
| MIC |
Waterproof MIC |
||
| Display | |||
| LCD Type | 8" TFT-LCD | Luminance | 500 cd/m2, Optional 700/1000 cd/m2 |
| Max. Resoltuion |
800*1280 |
Touchscreen | 5-points projected capacitive touchscreen |
| Cover Glass |
Corning Gorilla Glass III, hardness 7H, light transmittance 85% |
||
| OS | |||
| OS | Android 10 | ||

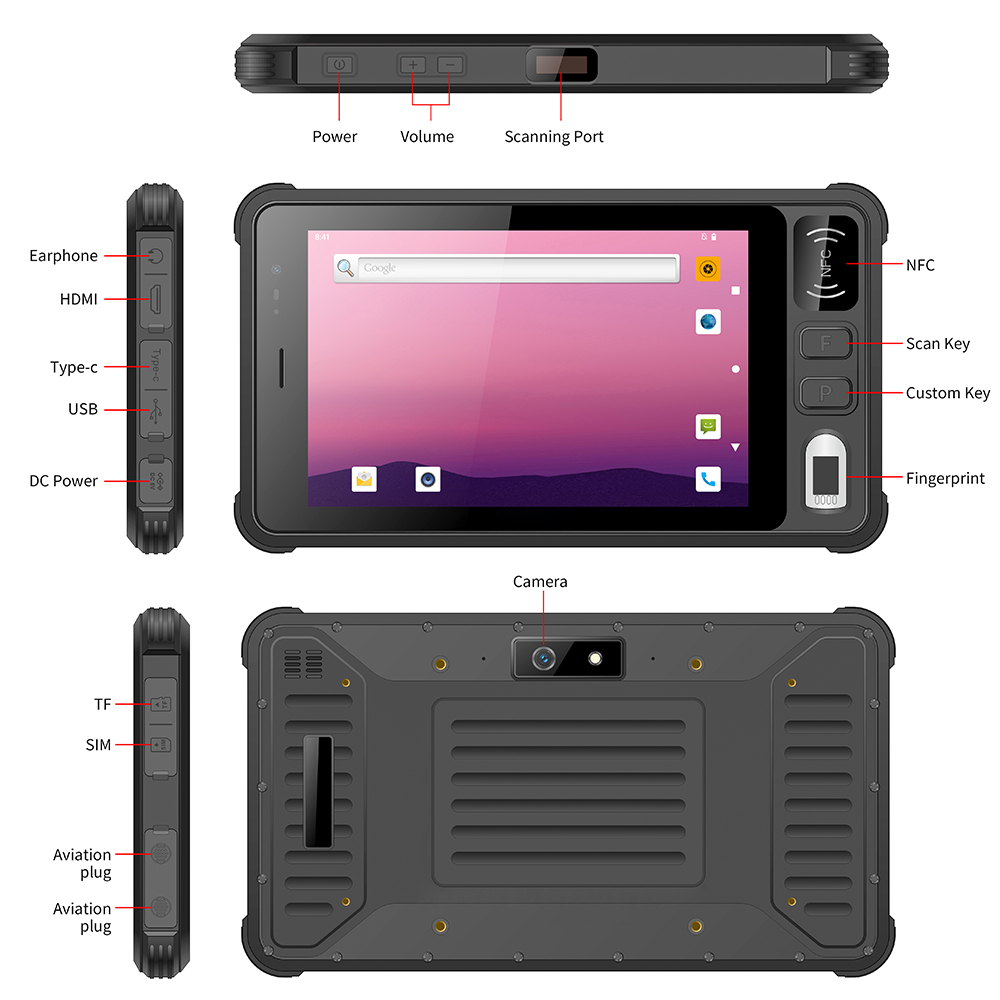

| I/O Interface | |||
| POGO PIN | 1*POGO PIN(USB+Charging) |
DC Jack | 1*DC Jack |
| USB | 1*USB Type C(USB OTG+Charging) 1*USB 2.0, TYPE A |
TF Card Slot | 1*TF Slot |
| Video |
1*mini HD |
SIM Card Slot |
1*SIM Slot |
| Audio |
3.5mm Headphone Jack |
Aviation Plug | Expand 1 * RS232 or 1 * DC or 1 * Ethernet port (100M) or 1 * USB 2.0 |
| Network Communication | |||
| WWAN | GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TD-SCDMA: B38/B39/B40/B41 CDMA2000 LTE-FDD: B1/B2/B3/B4/B5/B7/B8 LTE-TDD: B38/B39/B40/B41 |
WIFI | 802.11a/b/g/n/ac, 2.4G+5G Dual-band WIFI |
| Bluetooth | Bluetooth v2.1+EDR/v3.0+HS/v4.1 LE | ||
| GNSS | MT6631 GPS+BD+GLonass | ||
| Extended Functions | |||
| NFC | 13.56MHZ, support 14443A/14443B/15693 |
2D Barcode Scanner | Optional, SE4710 |
| Fingerprint |
Optional, store 3000 fingerprint information |
||
| Power | |||
| Battery Life |
10 hours (Play 1080P video under LCD 50% backlight) |
Power Input |
5V DC Input, 5V/3A power adapter |
| Battery |
9800mAh, 3.8V Li-Ion battery | ||
| Environment | |||
| Drop | 1.2m free fall to the wooden floor | ||
| IP Rating | Standard IP65, optional IP67 | ||
| Operating Temp. | -10℃~50℃ | ||
| Storage Temp. | -30℃~70℃ (excluding batteries) | ||
| Certificate | |||
| Certificate | CE、ROHS、UN38.3、MSDS | ||
| Mechanical | |||
| Dimension (WxHxD) | 256.6*145.7*22mm |
Weight | 0.83kg |
| Color | Black | ||
| Accessory | |||
| Accessory | Hand strap, Power adapter | ||
| Optional Accessory | Docking, Vehicle bracket , Passive touch pen, Type-C OTG cable, Type-C data cable | ||
