| Display | |||
| LCD Type | 12.1″ LCD screen | Contrast Ratio | 1000: 1 |
| Resolution | 1024*768 | Display Ratio | 4: 3 |
| Luminance | 350 cd/m2 | ||
| Touch Screen | |||
| Touchscreen Type | capacitive touch screen | Hardness | ≥6H |
| Light Transmission | ≥85% | ||
| I/O Ports | |||

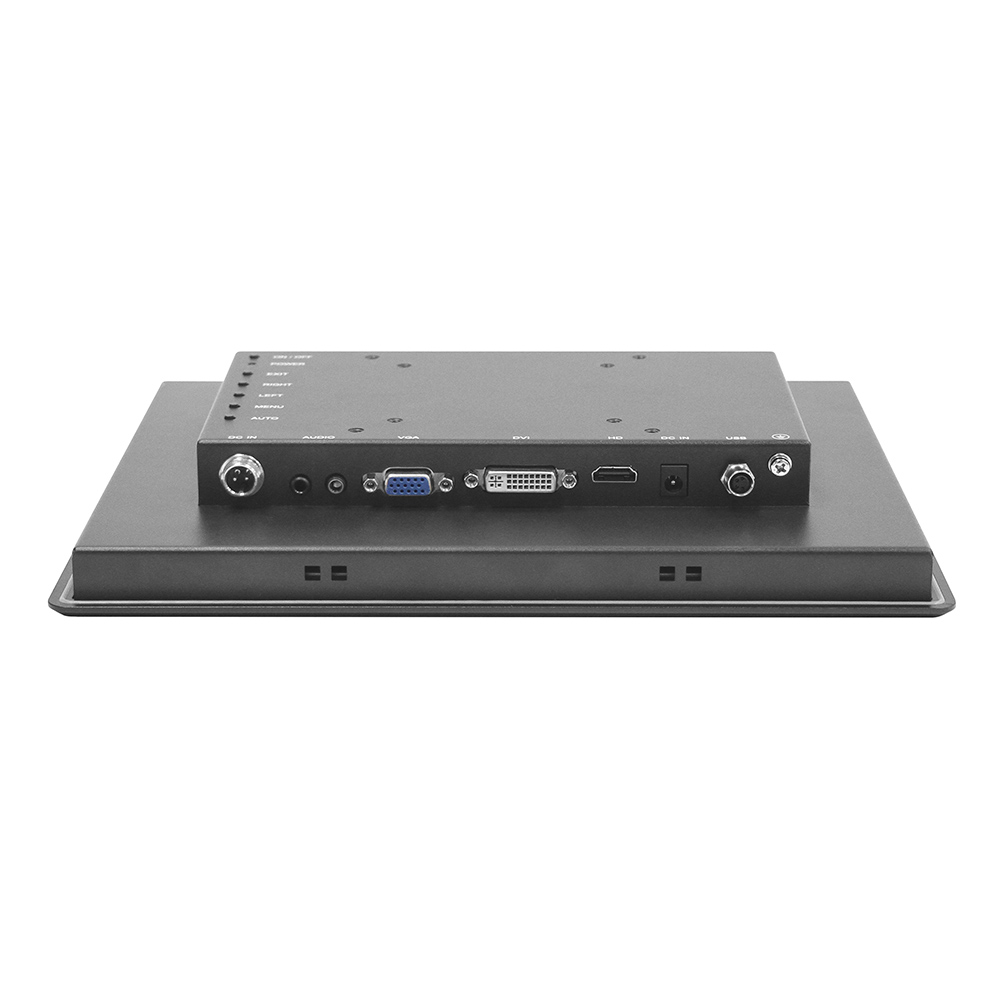

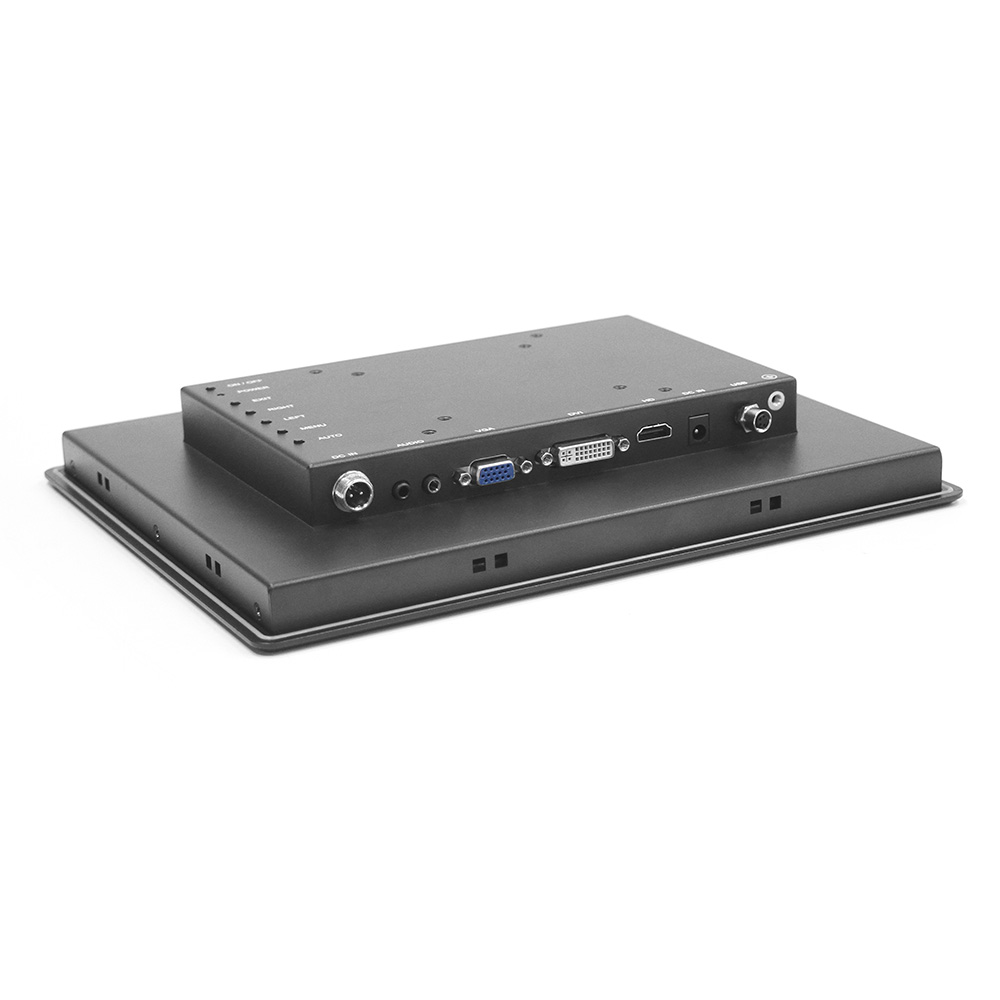

| VGA | 1*VGA | Power Socket | DC power input (optional aviation plug) |
| HD | 1*HD | Headphone Jack | 1*line-out+1mic-in |
| DVI | 1*DVI | Speaker | optional |
| OSD Language | |||
| Menu Language | Chinese, English, German, French, Italian, Korean, Portuguese | ||
| Power | |||
| Power Input | 12V DC input (9~36V wide voltage module optional, standard 12/5A power adapter) | ||
| Environment | |||
| Shock Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration | Operating Temp. | -10℃～60℃ Surface air flow |
| Vibration Protection | 10g acceleration, 11ms period | Storage Temp. | -20℃～70℃ |
| Reliability | MTBF≥30000h; MTTR≤0.5h | Humidity | 95% @40℃, no condensation |
| IP Rating | Front panel IP65 | ||
| Mechanical | |||
| Dimension (WxHxD) | 291*230*45mm | Material | Aluminum alloy panel all metal design |
| Weight | 2.11kg/3.4kg(N.W./G.W.) | ||
| Color | black | Mounting | VESA installation: 100*100mm, 75*75mm Embedded installation: 274.9*214.2mm |
