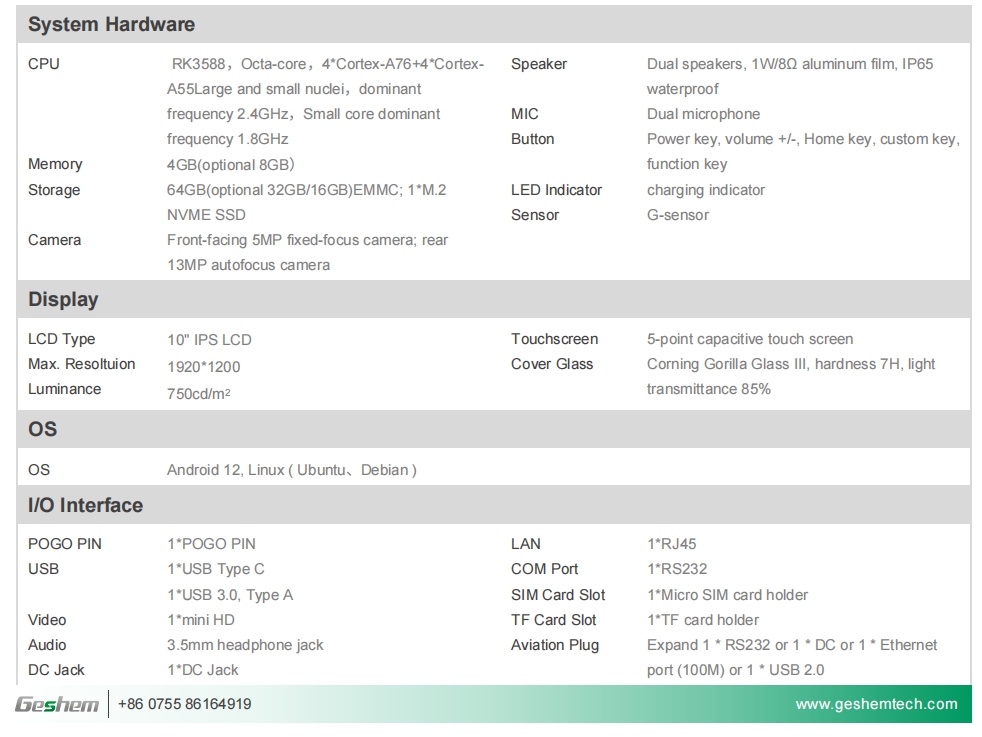

| System Hardware | |||
| CPU | RK3588，Octa-core，4*Cortex-A76+4*Cortex-A55Large and small nuclei，dominant frequency 2.4GHz，Small core dominant frequency 1.8GHz |
Speaker |
Dual speakers, 1W/8Ω aluminum film, IP65 waterproof |
| Memory | 4GB(optional 8GB) |
MIC | Dual microphone |
| Storage |
64GB(optional 32GB/16GB)EMMC; 1*M.2 NVME SSD |
Button |
Power key, volume +/-, Home key, custom key, function key |
| Camera |
Front-facing 5MP fixed-focus camera; rear 13MP autofocus camera |
LED Indicator |
charging indicator |
| Sensor |
Gsensor |
||
| Display | |||
| LCD Type | 10" IPS LCD | Touchscreen |
5-point capacitive touch screen |
| Max. Resoltuion |
1920*1200 |
Cover Glass | Corning Gorilla Glass III, hardness 7H, light transmittance 85% |
| Luminance |
750cd/m2 |
||
| OS | |||
| OS | Android 12, Linux ( Ubuntu、Debian ) |
||

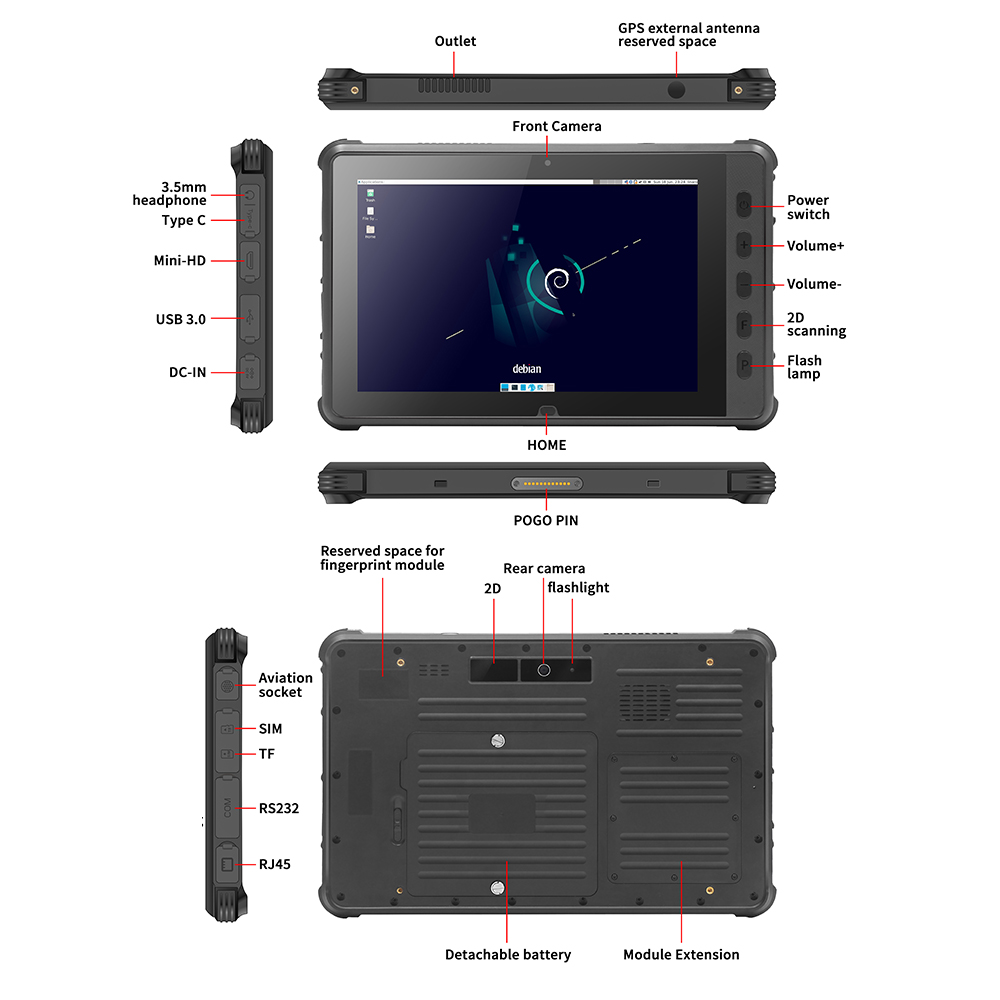

| I/O Interface | |||
| POGO PIN | 1*POGO PIN |
LAN |
*RJ45 |
| USB | 1*USB Type C 1*USB 3.0, Type A |
COM Port |
1*RS232 |
| Video |
1*mini HD |
SIM Card Slot |
1*Micro SIM card holder |
| Audio | 3.5mm headphone jack | TF Card Slot | 1*TF card holder |
| DC Jack |
1*DC Jack | Aviation Plug | Expand 1 * RS232 or 1 * DC or 1 * Ethernet port (100M) or 1 * USB 2.0 |
| Network Communication | |||
| WWAN | GSM： B3/B8 WCDMA： B1/B8 LTE-FDD： B1/B3/B7/B8/B20/B28A |
WIFI | WIFI5 |
| Bluetooth | Bluetooth 5.0 | ||
| GNSS | GPS+BeiDou | ||
| Extended Functions | |||
| NFC/RFID |
Optional NFC/HF-RFID/UHF-RFID，One out of three |
Barcode Scanner | Optional 1D/2D barcode |
| Power | |||
| Power Input | 19V/3.42A power adapter |
Battery | 4000mAh，11.4V |
| Environment | |||
| Drop | 1.2m free fall to the wooden floor | ||
| IP Rating | Standard IP65 | ||
| Operating Temp. | -10℃~50℃ | ||
| Storage Temp. | -20℃~70℃ (excluding batteries) | ||
| Certificate | |||
| Certificate | CE、ROHS、UN38.3、MSDS、IEC62133、IP Rating | ||
| Mechanical | |||
| Dimension (WxHxD) | 297.2*190.7*23.5mm Optional UHF RFID module, thickness increases 9.5mm |
Weight | 1.3kg |
| Color | Black | ||
| Accessory | |||
| Accessory | Hand strap, 19V/3.42A power adapter | ||
| Optional Accessory | Charging Dock, Type-C Data Cable, Capacitive Pen | ||
